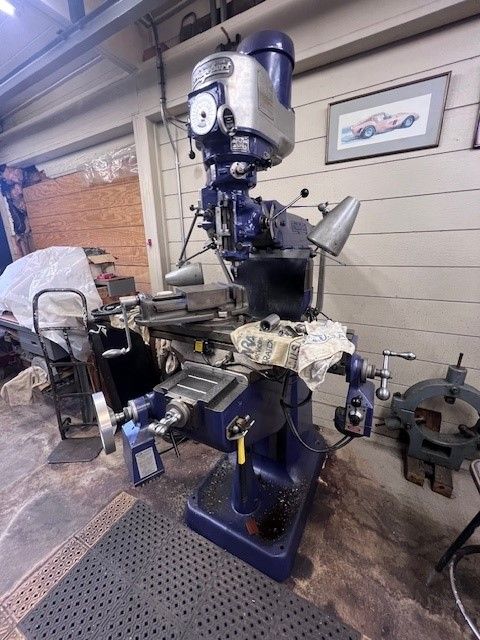

Bridgeport 2J Vari-Speed Vertical 4,200 RPM

Table Size: 9" x 42"
Number of T-Slots: 3
Longitudinal Table Travel: 30"
Cross Travel: 12"
Quill Travel: 5"
Knee Travel: 16"
Ram Travel: 12"
Max Distance, Spindle Nose to Table: 18-1/2"
Min Distance, Spindle Nose to Table: 2-1/2"
Max Distance, Centerline of Spindle to Face of Column: 18-3/4"
Min Distance, Centerline of Spindle to Face of Column: 6-3/4"
Head Tilt Left & Right: 90 Degrees
Head Tilt Front & Rear: 45 Degrees
Infinitely Variable Speed Range: 60–4,200 RPM
Spindle Taper: R-8
Max Collet Capacity: 3/4"
Quill Feeds: 0.0015", 0.003", 0.006"
Approximate Weight: 2,000 lbs

Servo Power Feed for Longitudinal Table Travel
Servo Power Feed for Knee Vertical Travel
Bijur One-Shot Lube
Bridgeport Vari-Speed Milling Head
1-1/2 HP 3 Phase Milling Head
