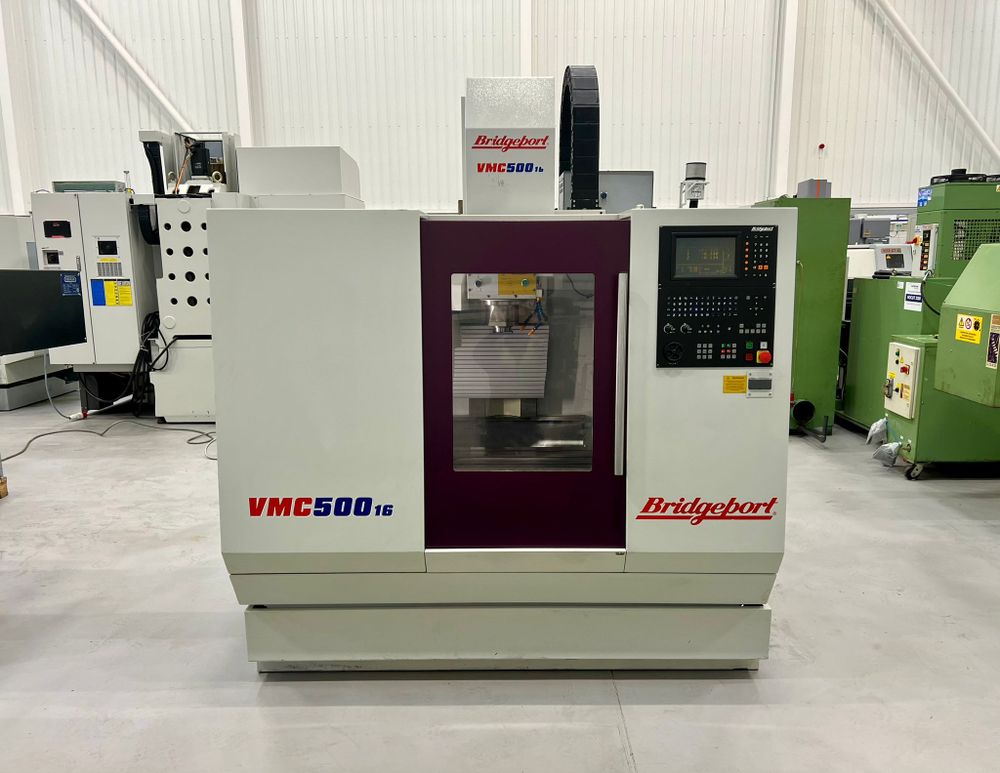

Bridgeport 500/16 3 Axis

X-axis travel: 500 mm
Y-axis travel: 340 mm
Z-axis travel: 520 mm
Rapid feed X-axis: 20 m/min
Rapid feed Y-axis: 20 m/min
Rapid feed Z-axis: 16 m/min
Control: Heidenhain TNC 370
Spindle power: 7.5 kW
Spindle speed: 40–7000 rpm
Spindle taper: BT40
Table surface: 840 x 360 mm
Table slots: 3 slots at 112 mm centers
Max table load: 500 kg
Tool changer capacity: 16
Tool change time (tool-to-tool): 6.5 s
Tool change time (metal-to-metal): 8.5 s
Max tool weight: 6 kg
Max tool length: 250 mm
Max tool diameter (adjacent pocket empty): 130 mm
Total tool weight capacity: 40 kg
Positioning accuracy: ±0.005 mm (Ap 0.010)
Repeatability: ±0.002 mm (Ru 0.004)
Machine dimensions (L x W x H): 2100 x 2000 x 3535 mm
Machine weight: 2600 kg
