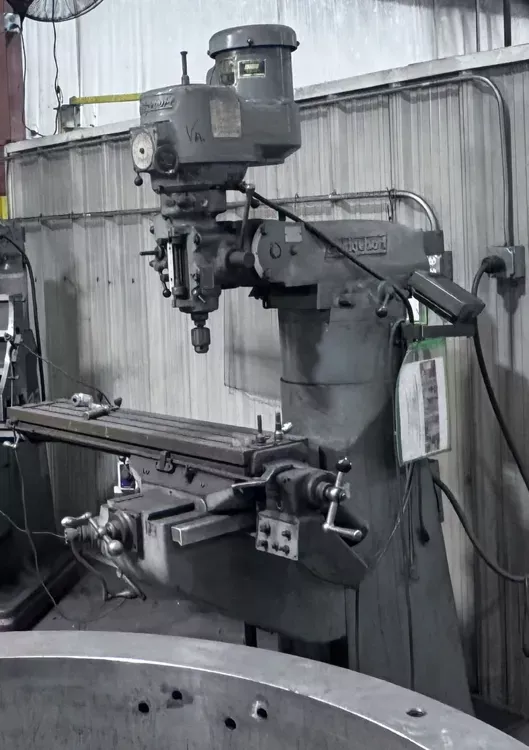

Bridgeport 9" X 42" Vertical 4200 RPM

X-Axis Travel: 33"
Y-Axis Travel: 12"
Quill Travel: 5"
Knee Travel: 16"
Ram Travel: 12"
Table to Spindle Nose Min: 2.5"
Table to Spindle Nose Max: 18.25"
Throat Distance Min: 6.75"
Throat Distance Max: 18.75"
Table Size: 9" x 49"
Number of T-Slots: 3
T-Slot Centers: 2.5"
T-Slot Size: 0.625"
Height Above Floor Max: 47.25"
Max Workpiece Weight: 750 lbs
Spindle Diameter: 1.875"
Quill Diameter: 3.375"
Spindle Taper: R-8
Spindle Speed Low Range: 60 - 500 RPM
Spindle Speed High Range: 500 - 4,200 RPM
Spindle Motor Power: 2 hp
Drilling Capacity (mild steel): 3/8"
Milling Capacity (mild steel): 2 CI/min
Boring Capacity (mild steel): 6" Diameter
Floor Area: 84" x 120"
Height: 87"
Net Weight: 1,930 lbs
Shipping Weight: 2,075 lbs
Input Power: 208/230/460V, 3 phase, 50/60 Hz
Power Capacity: 4 KVA
Step Pulley Head
Power Feed on X and Y Axes
