Bridgeport EZ TRAK DX Vertical 4200 RPM (infinitely variable)
AMERICA North (USA-Canada-Mexico)

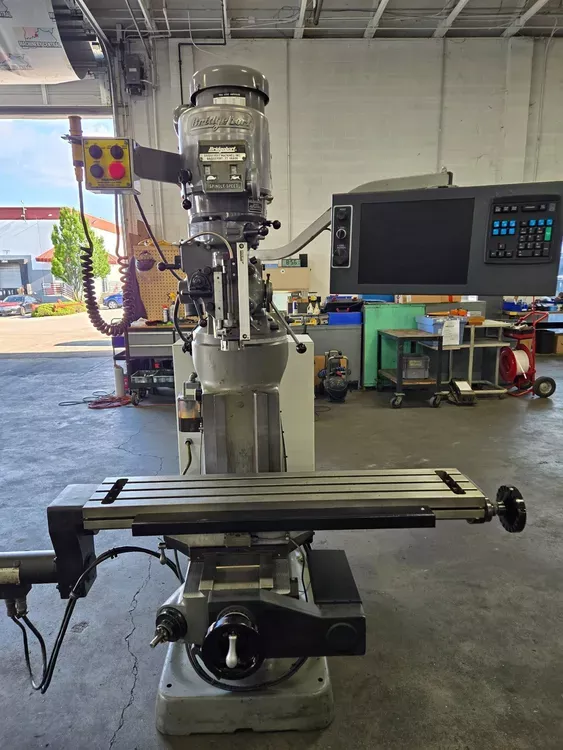

BRIDGEPORT EZ TRAK DX
Table size 9″ × 48″
Longitudinal travel 33.5″
Cross travel 12″
Vertical travel (knee) 14″
Quill travel 5″
Spindle speed range 60–4200 RPM (infinitely variable)
Spindle quill feeds 0.0015″ / 0.003″ / 0.006″
Ram travel 12″
Positioning speed (X/Y axis) 100 in/min
Feed rate range (X/Y axis) 0.1–100 in/min
Throat distance 6.75″ to 18.75″
Table to spindle nose distance 2.5″ to 18.25″
Motor 2 HP / 1735 RPM
Voltage 230/460 V (wired for 230V)
Phase 3
Cycle 60 Hz
Full load amps 6.2 / 3.1
Machine dimensions 70″ × 77″ × 87″
Machine weight 3000 lbs
Rebuilt 2HP variable speed head (top and bottom)
30 taper spindle with 33 holders
Chrome ways
New control box
New LED screen
New keypad
New motherboard
New static hard drive
New USB drive
New X drive
New encoder cable
New power supply
New bull gear assembly
New front and back pulleys
New castle nuts
New belts
New bearings
New brake spring
New lip seal
New 6″ machinist swivel vise
Auto lube system
