Bridgeport EZ TRAK DX Vertical 4200 RPM (variable)

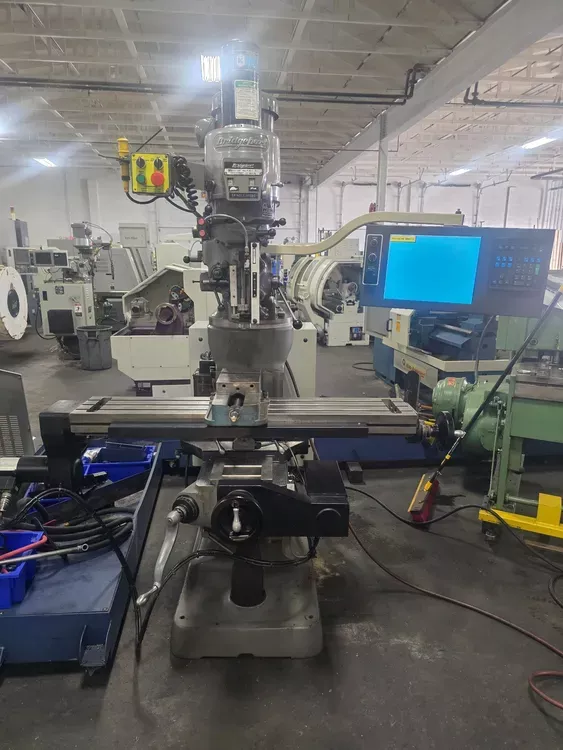

BRIDGEPORT EZ TRAK DX

Type: CNC vertical mill
Control: EZ Trak DX
Table size: 9" x 48"
Longitudinal travel: 33.5"
Cross travel: 12"
Vertical knee travel: 14"
Quill travel: 5"
Spindle speeds: 60 to 4200 RPM (variable)
Quill feeds: 0.0015" / 0.003" / 0.006"
Ram travel: 12"
Throat distance: 6-3/4" to 18-3/4"
Table to spindle nose distance: 2-1/2" to 18-1/4"
Positioning speed X-Y: 100 in/min
Feed rate range X-Y: 0.1 to 100 in/min
Spindle taper: R8
Motor: 2 HP / 1735 RPM
Voltage: 230/460V (wired 230V)
Phase: 3
Frequency: 60 Hz
Full load amps: 6.2 / 3.1
Approx. dimensions: 70" x 77" x 87"
Approx. weight: 3,000 lbs

Rebuilt 2 HP variable speed head
Kurt power drawbar
Chrome ways
New control box
New LED screen
New keypad
New main board
New motherboard
New static hard drive
New USB drive
Auto lubrication system
