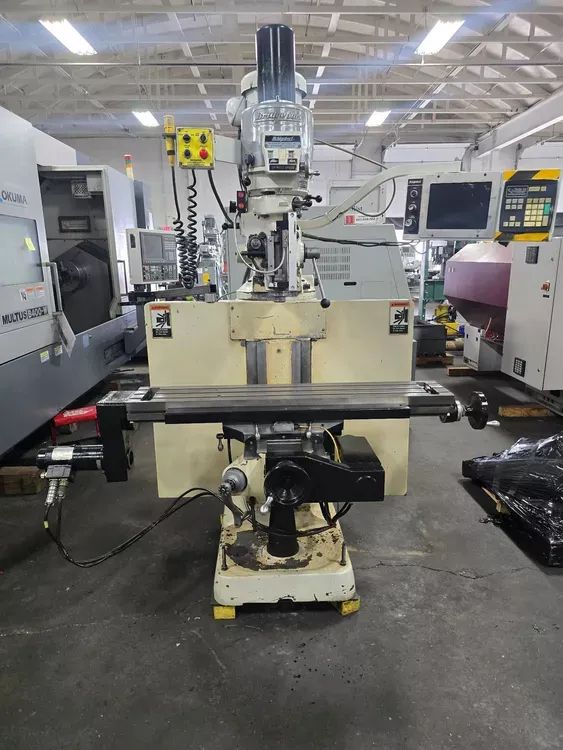

Bridgeport EZ TRAK SX Vertical 4,200 RPM

Ref : 2730733-3-GO
Condition : Used
Manufacturer : Bridgeport
Model : EZ TRAK SX
Type : Vertical
Spindle Speed : 4,200 RPM
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

BRIDGEPORT EZ TRAK SX

Table size 9" x 48"
Longitudinal travel 33.5"
Cross travel 12"
Vertical travel of knee 14"
Quill travel 5"
Spindle speeds 60 to 4,200 RPM
Spindle quill feeds 0.0015", 0.003", 0.006"
Ram travel 12"
Positioning speed X-Y axis 100 in/min
Feed rate range X-Y axis 0.1 to 100 in/min
Throat 6.75" to 18.75"
Distance table to spindle nose 2.5" to 18.25"
Motor 2 HP / 1735 RPM
Voltage 230/460V, currently wired for 230V
Phase 3
Frequency 60 Hz
Full load amps 6.2/3.1
Approximate dimensions 70" x 77" x 87"
Approximate weight 3,000 lbs

Rebuilt 2 HP variable speed head (upper half)
Kurt power drawbar
R8 spindle
Chrome ways
New LED screen
New keypad
New motherboard
New static hard drive
New USB drive
New X axis armature cable
New Z axis scale
Auto lube system
