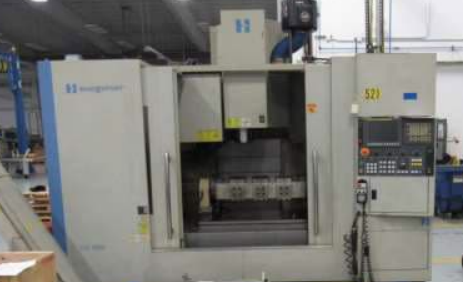

Bridgeport, Hardinge GX1000 3 Axis

X-axis travel: 1020 mm (40.16")
Y-axis travel: 540 mm (21.25")
Z-axis travel: 540 mm (21.25")
Rapid traverse (X/Y/Z): 1417 IPM
Feedrate: 472 IPM
Control: Fanuc CNC
Rotary table
Chip conveyor
Table size: 1120 × 540 mm (44.09" × 21.25")
Maximum table load: 798 kg (1,760 lb)
Spindle taper: BIG PLUS No.40
Tool holder: CT40 or BT40
Spindle power: 11.2/14.9/18.5 kW (15/20/24.8 HP)
Spindle speed: 10,000 rpm
Torque: 84 ft-lb
Tool changer: 30 stations
Swing-arm ATC
Maximum tool diameter: 150 mm (adjacent pockets)
Maximum tool diameter: 76 mm (all pockets occupied)
Maximum tool length: 300 mm
Maximum tool weight: 8 kg (17.6 lb)
Tool-to-tool change time: 4.5 sec
Machine dimensions: 2946 × 2210 × 2718 mm
Machine weight: 5,629 kg (12,408 lb)
