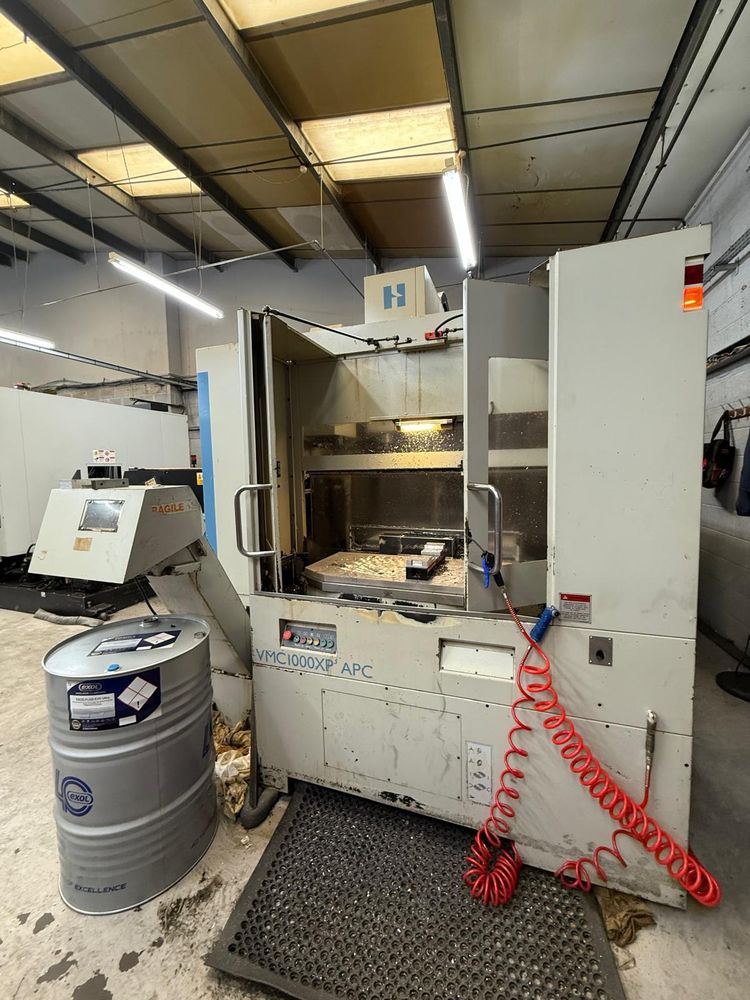

Bridgeport, Hardinge VMC1000XP3 APC 3 Axis

BRIDGEPORT HARDINGE
VMC1000XP3 APC
2006

Control: FANUC 18iM
Machine dimensions: 3670 mm x 4650 mm x 3330 mm
Machine weight: 12000 kg
Maximum cutting feedrate: 20000 mm/min
Maximum tool diameter: 75 mm
Maximum tool diameter with empty adjacent pockets: 125 mm
Maximum tool length: 300 mm
Maximum tool weight: 7 kg
Maximum workpiece height: 550 mm
Maximum workpiece weight: 300 kg
Minimum height under spindle: 130 mm
Maximum height under spindle: 730 mm
Number of pallets: 2
Pallet change time: 10 seconds
Pallet size: 1020 mm x 550 mm
Rapid feedrate: 30 m/min
Spindle motor power: 30 kW
Spindle speed: 12000 RPM
Tool change time (chip to chip): 5 seconds
Tool size: BT40
Traverse X-axis: 1020 mm
Traverse Y-axis: 610 mm
Traverse Z-axis: 600 mm

Coolant system
Interlocked guards
Low voltage light
Swarf conveyor
Through spindle coolant
Twin pallet system
