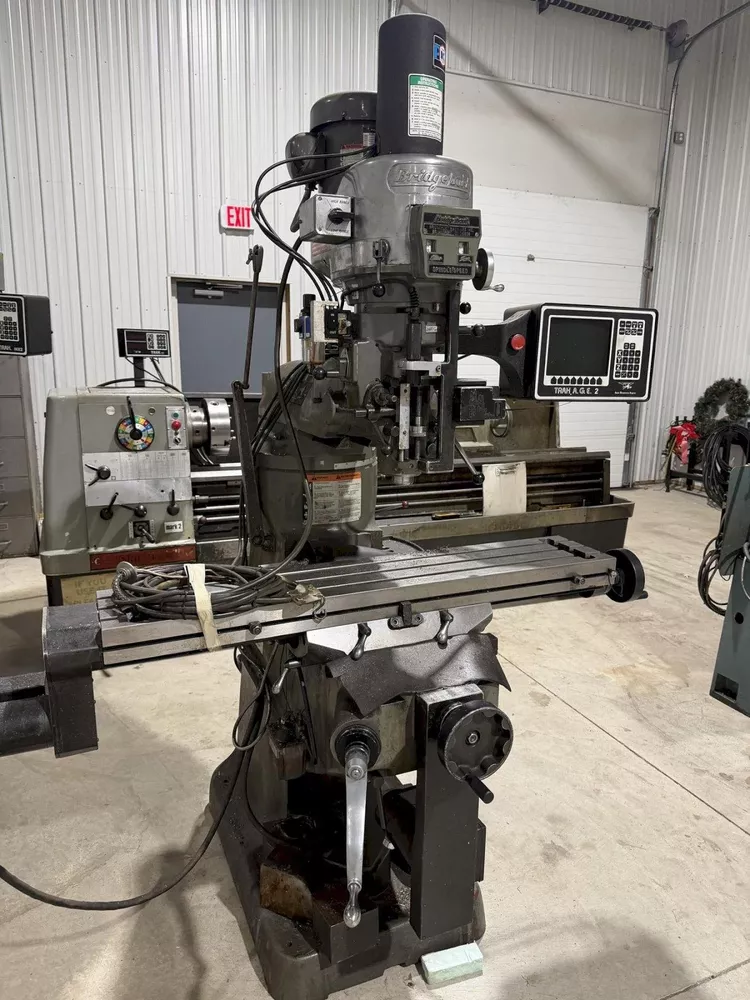

Bridgeport Series 1 Vertical 4,200 RPM

Ref : 2785879-3-GO

Condition : Used

Manufacturer : Bridgeport

Model : Series 1

Type : Vertical

Spindle Speed : 4,200 RPM

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Table size: 9" x 48"
Longitudinal table travel: 30"
Saddle cross travel: 12"
Knee vertical travel: 16"
Spindle quill travel: 5"
Ram travel: 12"
Throat distance range: 6-3/4" - 18-3/4"
Table to spindle nose distance: 0" - 18-1/2"
Spindle speeds, variable: 60 - 4,200 RPM
Collets: Bridgeport R8
Max uniform table load: 300 lbs
Power table feed rate: 0.5" - 35"/min
Control: TRAK A.G.E. 2 CNC 2 Axis, 3 Axis DRO
Equipped with: Bijur one shot lube
Equipped with: Kurt Power Drawbar
Machine dimensions LxWxH: 70" x 60" x 86"
Machine weight: 2,300 lbs
Voltage: 220V / 440V / 3P / 60Hz
