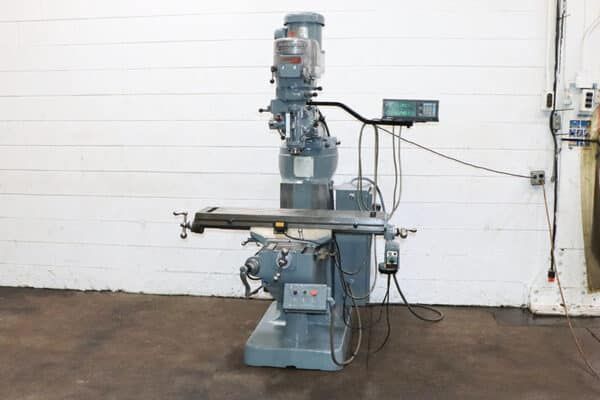

Bridgeport SERIES 1 Vertical 4200 RPM

Longitudinal Table Travel: 36 in
Cross Travel: 12 in
Quill Travel: 5 in
Knee Travel: 16 in
Ram Travel: 12 in
Table Size: 9 × 48 in
Number of T-Slots: 3
Spindle Nose to Table: 2.5–18.5 in
Spindle Centerline to Column: 6.75–18.75 in
Head Tilt (Left/Right): ±90°
Head Tilt (Front/Rear): ±45°
Spindle Speed: 60–4,200 RPM
Spindle Taper: R8
Maximum Collet Capacity: 3/4 in
Quill Feed Rates: 0.0015 / 0.003 / 0.006 in/rev
Spindle Motor: 2 HP
Machine Weight: Approx. 2,000 lb
Sony 2-Axis Digital Readout
Power Longitudinal Feed
Bijur One-Shot Lubrication System
Bridgeport Series I Milling Head
