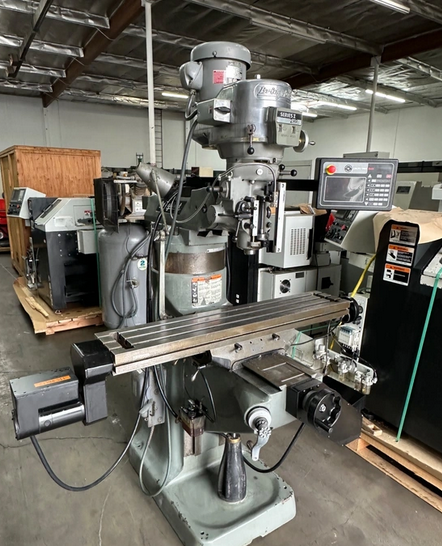

Bridgeport SERIES I 2-AXIS CNC PROTOTRAK EMX Vertical 4200 RPM

BRIDGEPORT SERIES I 2-AXIS CNC PROTOTRAK EMX


Table travel (X-Axis): 36"
Saddle travel (Y-Axis): 12"
Quill travel: 5"
Knee travel (Z-Axis): 16"
Ram travel: 12"
Throat distance (Min): 6.75"
Throat distance (Max): 18.75"
Table size: 49" x 9"
T-Slot center distance: 3 @ 2.5" centers
T-Slot size: 0.625"
Max workpiece weight: 750 lbs
Spindle speed high (variable): 500–4200 RPM
Spindle speed low: 60–500 RPM
Manual drilling capacity: 3/4" mild steel
Boring range: 6" mild steel
Spindle diameter: 1.875"
Quill diameter: 3.375"
Power quill feed: 0.0015"/rev
Manual adjust feed: 0.003"/rev
Manual adjust feed: 0.006"/rev
Power rating 30 min duty cycle: 3 HP
Power rating continuous: 2 HP
Tooling capacity: R-8 collets
Floor space: 8.2’ x 5.3’
Height: 7.04’
Weight: 1950 lbs

Prototrak EMX control (2 axis CNC)
Bijur auto lube
Chrome ways
