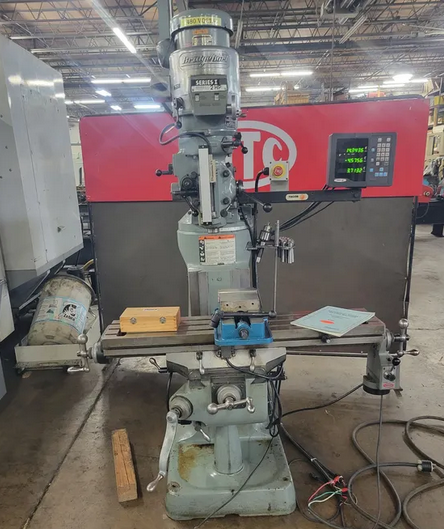

Bridgeport SERIES I Vertical 4200 rpm (variable)

BRIDGEPORT SERIES I
1987

Table width: 9"
Table length: 42"
Longitudinal table travel: 30"
Cross travel: 12"
Vertical knee travel: 16"
Quill travel: 5"
Ram travel: 12"
Throat depth: 6-3/4" to 18-3/4"
Spindle speeds: 60 to 4200 rpm (variable)
Spindle feeds: 0.0015, 0.003, 0.006 ipr
Spindle taper: R8
Head tilt front/back: 45° either way
Head swivel left/right: 90° either way
Motor power: 2 HP
Voltage: 440 V, 3 Phase, 60 Hz
Digital readout: 3 axis Fagor DRO
Chrome ways: Yes
One-shot lubrication: Yes
Power feed: Servo
Collet type: R8
Includes R-8 collet set
Includes drill chuck and arbor
Includes 6" lock-type vise
Includes edge finder
Includes manual
Overall dimensions: 6' x 6' x 7' high
Weight: 2,000 lbs.
