Bridgeport VMC 1000 XP 4 Axis

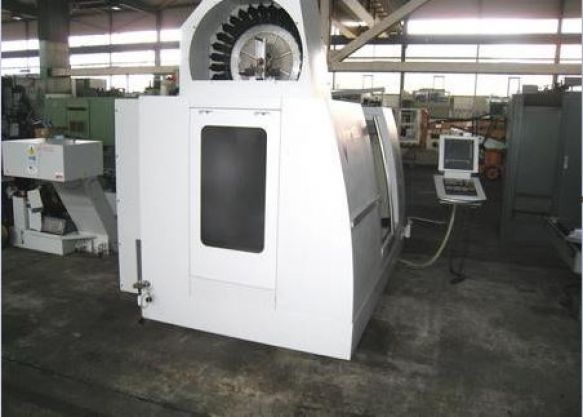

BRIDGEPORT VMC 1000 XP
New in 2003

x-travel 1020 mm
y-travel 610 mm
z-travel 600 mm
control SIN 840D
table surface area 1.150 x 580 mm
spindle turning speed – stepless 0 – 12.000 U/min
spindle drive 13,00 kW
rapid traverse X- Yaxis 43 m/min
rapid traverse Z-axis 30 m/min
tool taper SK40 DIN 86971
tool magazin: 30 Stück
total power requirement kW
weight of the machine ca. 4,75 t
dimensions of the machine ca. 5,50 x 3,50 x H3,50m

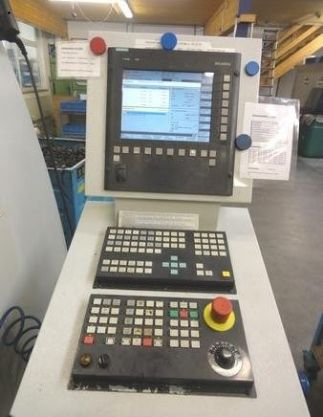

Control Siemens 840D powerline
electronic handwheel
swarf conveyor
coolant unit
coolant through the spindle 20bar 30 l/min;

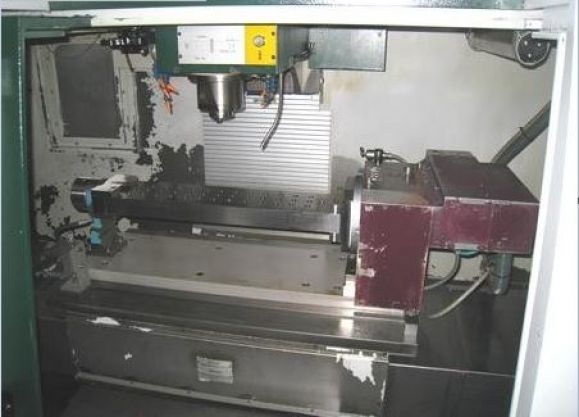

4th Axis DCN280Di
Rotoclear
SK40 DIN 86971
