Brother CNC CONTROL 16000RPM Speedio MX200 X3 Compact Multi-Tasking Machine. 3 Axis

BROTHER Speedio MX200 X3 Compact Multi-Tasking Machine.
Year 2021.

Complete with UR10 Collaborative robot
Table size 140mm dia.
Travels X/Y/Z 200/440/305mm A travel 120 ～ －30 deg. C travel 360 deg.
Distance between table top and spindle nose end 150 ～ 455 (5.9 ～ 17.9).
Max. loading capacity Table side 40 (88.2) / Tale side 11 (24.3).
Max. table load inertia Table side 0.29 (991) / Tale side 0.04 (137).
Spindle speed 16000RPM.
Speed during tapping 6000RPM.
Tapered hole 7/24 tapered No.30.
Coolant Through Spindle(CTS).
High pressure coolant. Auto door.
Probing.Turning Spindle – Max. spindle speed 2000RPM.
Rapid traverse rate(XYZ-area) 50 × 50 × 50.
Cutting feed rate X, Y, Z axis ： 1 ～ 30,000.
Indexing feedrate(A and C) A axis : 60 C axis : 200.
Tool shank type MAS-BT30.
Pull stad type ＊4 MAS-P30T-2.
Tool storage capacity 22.
Max. tool length 200mm.
Max. tool diameter 80mm.
Max. tool weight 3Kg.
Tool selection method Random shortcut method.
Dimension L x W x H 1280 x 3862 x 2603mm.
Weight 3050Kg

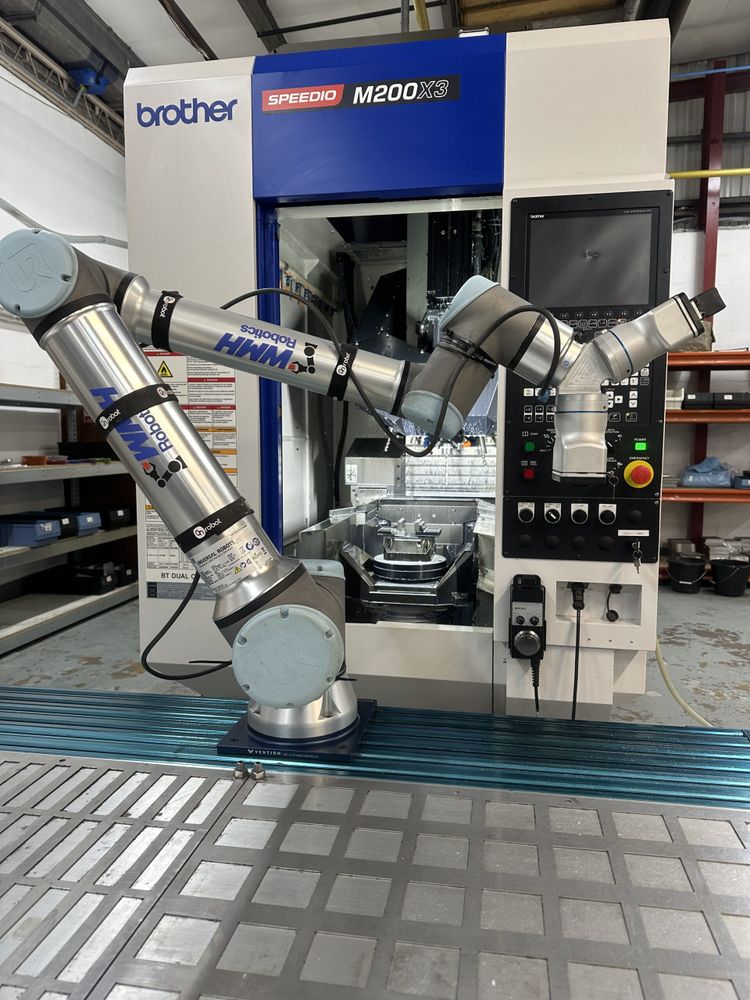

The machine is currently integrated to a Collaborative robot.
The cobot can easily be removed.
UR10 Collaborative robot, 10kg
On Robot Dual Gripper
rigid base with dowels for multiple setups
