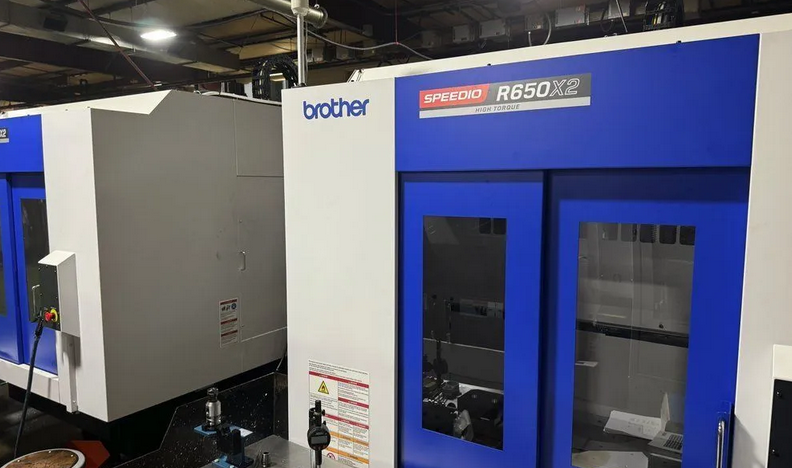

Brother R650X2 4 Axis

X-axis travel: 25.6 in
Y-axis travel: 15.7 in
Z-axis travel: 12 in
Rapid traverse X/Y/Z: 1969 IPM
4-axis
CNC-C00 control with PLC
Manual pulse generator
Spindle speed override
CTS
Blum ZX Speed wired with 150 mm riser
Table size: 31.5 in x 15.7 in
Pallet size: 31.5 in x 15.7 in
Pallet indexing time: 3.4 sec
Distance from table top to spindle nose: 9.8 in - 21.8 in
Maximum jig height: 16.5 in
Spindle taper: BT30 Big Plus
Spindle speed: 10000 RPM
Maximum tapping speed: 6000 RPM
Spindle power: 17 HP
Spindle power: 11.7 HP
Cutting feed rate: 0.04 - 1181 IPM
Tool changer capacity: 22
Tool-to-tool time: 0.8 sec
Chip-to-chip time: 1.6 sec
Dual rotary pallet machining center
High torque spindle
3-stage light
Work light
Shower gun
Coolant system with 200 L tank
Top cover
Door interlock
Fixtures included
Machine dimensions: 74.7 in x 135.7 in x 106.1 in
Machine weight: 7716 lb
Cut hours: 500 hours
