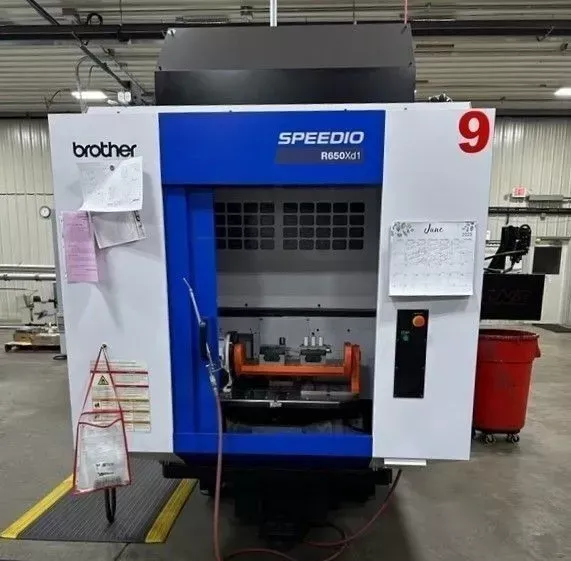

Brother SPEEDIO R650Xd1 3 Axis

X - Axis Travel 25.6"
Y - Axis Travel 15.7"
Z - Axis Travel 12"
Rapid Traverse Rate - X 1,696 in/min.
Rapid Traverse Rate - Y 1,696 in/min.
Rapid Traverse Rate - Z 1,696 in/min.
Cutting Feed Rate 1,181 in/min.
Spindle Speed 16,000 RPM
Spindle Taper 30
Control CNC (CNC-D00)
Number of Tables / Pallets 2
Table Length 31.5"
Table Width 15.7"
Weight on Table 441 lb
Spindle Nose to Table Top 13.8" ~ 25.8"
Automatic Tool Changer 28 Position
Tool Diameter 3.1"
Tool Length 7.9"
Tool Weight 6.6 lb
Machine Weight 7,826 lb
Dual Table
Chip Conveyor with Integrated High Pressure Coolant
Manual Pulse Generator
Work Light Kit with Brackets
Spindle Override
NOP 1000 psi Brother CTS Pump and Filter Kit
LNS Chip Conveyor
Renshaw OMP 40 Spindle Probe
Two Blum Z-Nano with 150 mm Riser for R Series
Fourth Axis Index Table with Interface Brother T-200A R
SOP Feature Coordinate System G6 8.2
Sub Plate Fits T-200 A.D. and Support Table One per Table
Support Table with Clamp for T-200 A.D. D and T-200 A
Rotary Joint for T-200 A.D. DNT-200 A Rotary Table 6P
LNSMH 140 LH Side/Rear
