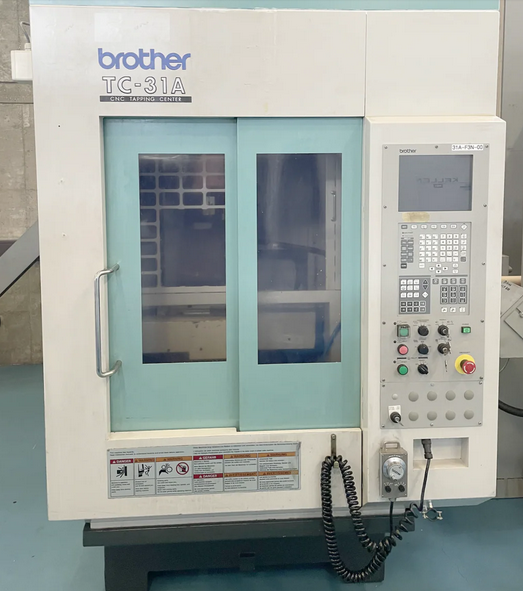

Brother TC-31 A Vertical Machining Center (2-Table) 3 Axis

Control: CNC – A00
Number of Axes: 3
Number of Spindles: 1
Number of Tables: 2

Table Size: 500 x 270 mm
Max Table Load: 80 kg

X Axis Travel: 350 mm
Y Axis Travel: 250 mm
Z Axis Travel: 350 mm

Spindle Nose: BT30
Spindle Nose to Table Distance: 200 – 550 mm

Spindle Speed: 22 – 22,000 RPM (Stepless)

Feed Rate: 5 – 20,000 mm/min
Rapid Traverse: 50 m/min

Tool Changer Capacity: 26
Max Tool Diameter: 55 mm
Max Tool Length: 200 mm
Max Tool Weight: 2 kg

Air Requirement: 4 – 6 bar
Electrical: 380V / 3 Phase / 50 Hz
Power Requirement: 25 kVA

Machine Dimensions: 2,341 x 1,410 x 2,165 mm
Machine Weight: 2,100 kg

Accessories:
Coolant System
Tool Setter
Electronic Handwheel
Rinsing Gun
