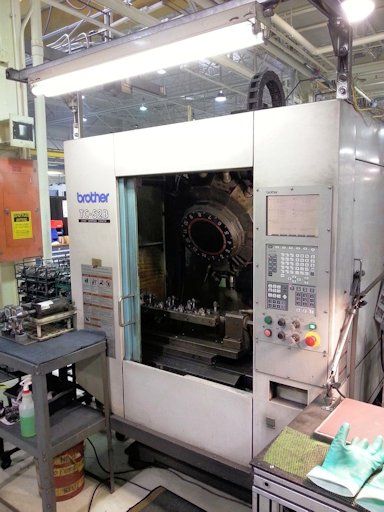

Brother TC-S2B 10,000 RPM

BROTHER TC-S2B
2003

X-axis travel: 27.5"
Y-axis travel: 14.17"
Z-axis travel: 12.6"
Table size: 31.5" x 12.6"
Spindle speed: 10 - 10,000 RPM
Spindle taper: BT30
Spindle nose to table top: 6.3" - 16.9"
Spindle motor: 13 HP
Max tapping speed: 6000 RPM
Number of tools: 21
Table load capacity: 330 lbs
Rapid traverse rates (X & Y / Z): 1417 / 1969 IPM
Tool change time (T-T / C-C): 1.1 / 1.8 seconds
Max tool diameter: 3.15"
Max tool length: 7.87"
Max tool weight: 6 lbs
Machine dimensions (L x W x H): 72" x 62" x 87"
Machine weight: 3968 lbs
BROTHER CNC-A00 CNC control
10.4" monochrome LCD
Conversational & G-Code programming
Extended X-axis travel 27.5"
21 tool turret
Nikken indexer with tailstock
Rigid tapping
Dual chip chutes
New X-Y ball screws
Hydraulic clamping
Currently under power in production
