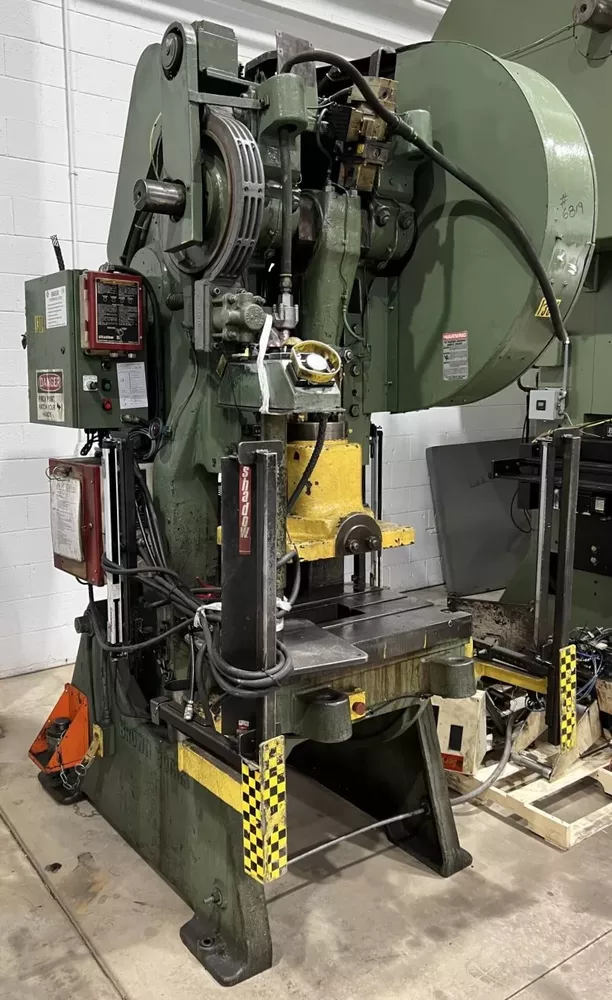

Brown & Boggs 17LW 60 TONS

Brown Boggs 17LW Press
CAPACITY 60 TONS

STROKE APPROX. 5″
MAX. SHUT HEIGHT TO BED 14″
BED AREA 32″ X 21.5″ (RL X FB)
BOLSTER PLATE 32″ X 21.5″ (RL X FB) X 2.75″ THICK WITH 10″ X 6″ HOLE IN CENTER – 5″ OFF CENTERS
RAM AREA 21″ X 16″ (RL X FB)
RAM ADJUSTMENT APPROX. 2.5″
SPEEDS APPROX. 90 SPM
DISTANCE BETWEEN UPRIGHTS 15″
THROAT DEPTH 12″
FLOOR TO BED HEIGHT 34.5″

AIR CLUTCH BROWN BOGGS AIR CLUTCH & BRAKE
PRESS CONTROLS WINTRISS CLUTCH/BRAKE CONTROL
ELECTRIC MOTOR 10 HP 575V-3-60 BROOK HANSEN MOTOR | 10 AMPS
APPROX. DIMENSIONS 68″ X 88″ (RL X FB) X 117″ HIGH
APPROX. WEIGHT 12,500 LBS.

Equipped With
floor standing, cast iron frame
