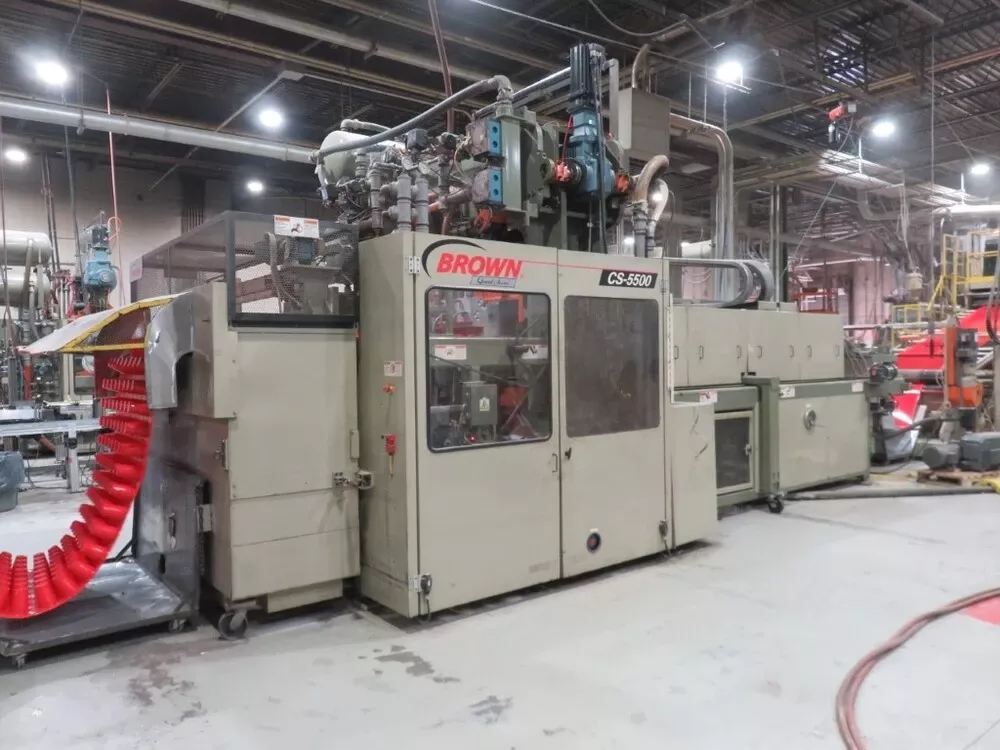

Brown CS-5500 Quad Series

Brown Former (2011-Upgraded 2023) CS-5500 Quad Series Match Metal Continuous Former
Max Mold Capacity 50" x 50"
Top Oven Ceramic
Bottom Oven Ceramic (Rblt. 2023)
Oven Length 150"
Indexing Servo (Upgraded Kinetix 7000 Drive System)
Platen Stroke 9.0"
Form Station Platen Drives Servo Platen Drives
Form Station Tonnage 155 Tons
Form Station Holding Force 260 Ton Holding Force
Coining Force Tonnage 180 Ton
Draw Depth 7.0" Draw
Control Programmable Touch Screen (Upgraded)
Sheet Cutter Brown Sheet Slitter (2008)
Shipping Dimensions 28' L x 9' W x 12' H at Approx. 44000 Lbs.
Brown Trim Station (2021) Model T-345V / V-Series High Speed Vert. Trim Press
Trim Station Tonnage 30 Ton
Max Die Size 57" x 30"
Max Strokes Per Min 145
Max Sheet Width 53"
Platen Drives 30 HP SEW AC Servo Motor
Drive Controller Allen Bradley PowerFlex 755
Controller Allen Bradley PanelView Plus
Part Ejection Servo Part Ejection
Power Requirement 480v / 3 ph / 60hz / 117 amps
Footprint 270" L x 195" x 170"
Weight Approx. 24000 Lbs

Features
(2) Plate Line Loading & Unloading Carts
