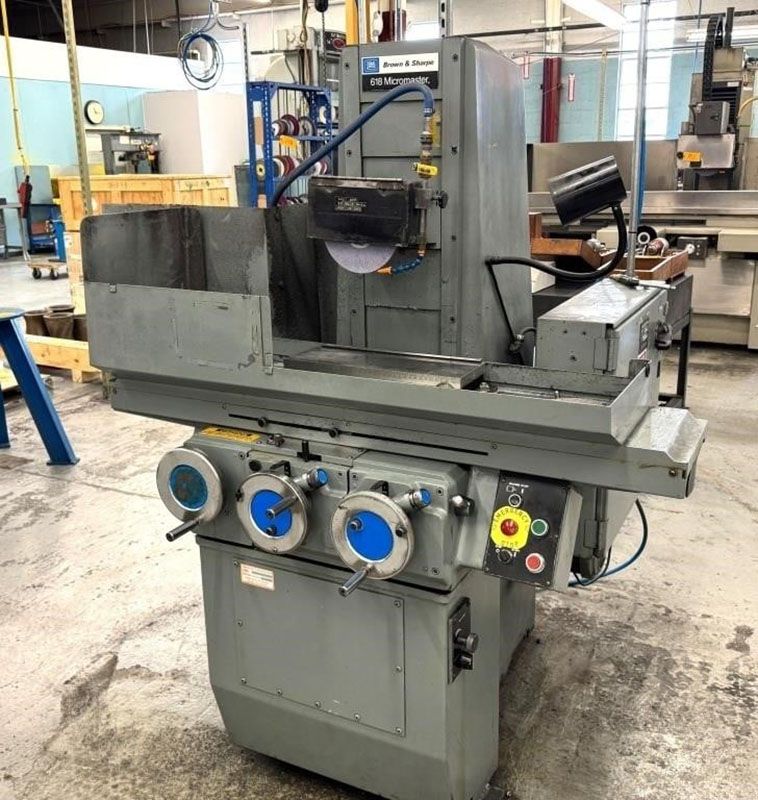

Brown & Sharpe 618 MICROMASTER SERIES II

Width & Length Ground 6" x 18"
Height of Work Ground with Standard 7" Wheel 15-1/2"
Maximum Longitudinal Travel 22"
Longitudinal Table Speed 5 to 100 FPM
Maximum Cross Travel 7"
Auto Crossfeed Increment per Table Pass up to 1/4"
Handwheel Adjustable Dial Graduated to Read 0.0002"
Fine-Feed Knob Adjacent to Handwheel 0.0001"
Vertical Travel of Spindle 15-3/4"
Handwheel Adjustable Dial Graduated to Read 0.0002"
Fine-Feed Knob Adjacent to Vertical Handwheel 0.0001"
Approximate Machine Weight 3,000 lbs
Approximate Floor Space 56"L x 62"D x 68"H
Hydraulic Longitudinal & Cross Feeds
Column Design, Column Moves for Cross Feed
Fine Feed Knob for Both Cross Feed Handwheel & Vertical Handwheel with 0.0001" Graduation
1.5 HP Brown & Sharpe Super-Precision Direct Drive Spindle
6" x 18" Fine-Division Permanent-Magnetic Chuck
Coolant System with Coolant Tank & Pump
Self-Contained Hydraulic System
Motors on Machine 3/60/230-460 Volts
Machine Wired for 3/60/230 Volts, 9 FLA
