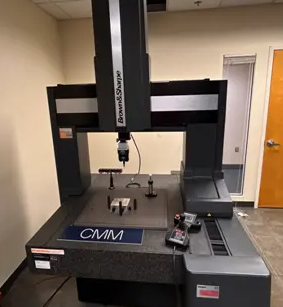

Brown & Sharpe VALIDATOR

Coordinate measuring machine (CMM)
X-Axis Travel: 25.6"
Y-Axis Travel: 23.6"
Z-Axis Travel: 19.7"

Table size (max): 42" × 48"
Table working surface: 32" × 48"
Max table load: 2,500 lbs
Max clearance (table to bridge): 21.2"

Renishaw PH20 touch trigger probe head
Multifunction MCUlite-2 joystick
Change rack system: MCR20
Glass scale / mechanical bearings system (PH20 head)

Operating temperature: 15–35 °C
Storage temperature: -25–70 °C

Max movement speed: 3 rev/s (1281 mm/s)
Tough head speed: 50 mm/s
Rotation angle (A-axis): -115° to 115°
Rotation angle (B-axis): infinite
Angular resolution: 0.4 µrad

Electrics: 115V / 1PH / 60Hz

Machine dimensions: 60" × 53" × 105"H
Machine weight: 4,400 lbs
