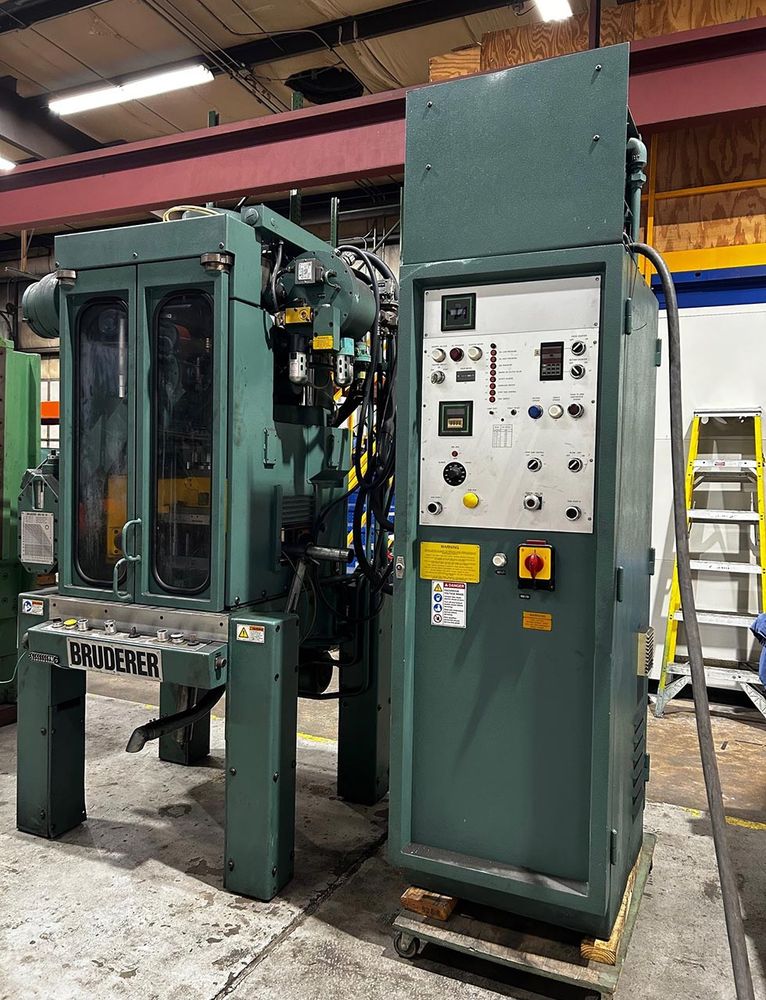

Bruderer BSTA 22E-1800 22 ton

Capacity: 22 ton
Stroke adjustable: 0.312″ to 1.50″
Strokes per minute variable: 100-1800
Slide adjustment: 1.97″
Shut height at 1.00″: 9.94″
Strip height adjustable: 2.00″ to 4.72″
Side window width: 10″
Ram area: 21.75″ L-R x 10.75″ F-B
Bed size: 22.05″ L-R x 15.75″ F-B
Motor variable speed: 25 HP
Electrics: 220/440V/60HZ/3PH
Weight approx.: 8000 lbs

Air clutch and brake
Recirculating lubrication system including heat exchanger
Bruderer OEM press control with 8-point fault indicator
Bruderer feeder model BBV 190/12085 (L-R)
Maximum feed advance: 0-3.35″
Maximum material thickness: 0-0.080″
Maximum material width: 6.00″
4-post frame design
Top drive
Hydrostatic variable speed drive
T-slotted ram
3″ T-slotted bolster
4 press mounts
