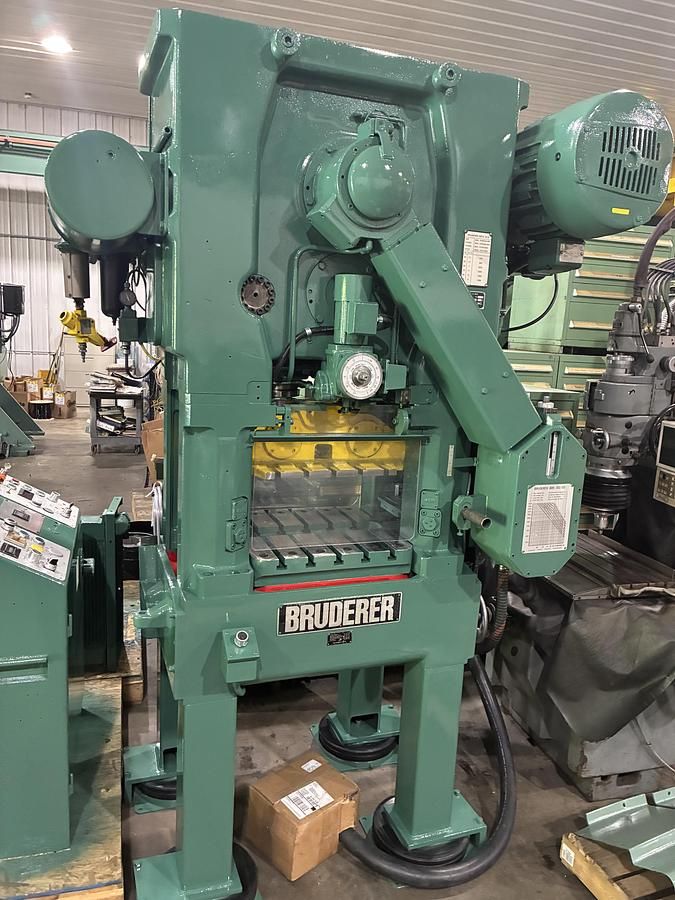

Bruderer BSTA 30II 30 tons

BRUDERER BSTA 30II
1983

Capacity: 30 tons
Stroke: 0.5" - 1.5"
Shut height over bed: 9.17"
Adjustment: 2"
Bed area: 20.86" LR x 20.86" FB
Slide area: 20.86" LR x 14.17" FB
Variable speed: 100 - 1500 VSPM
T-slotted bolster plate
Cylindrical post guides
Standard Bruderer press control
Hydrostatic vari-speed drive
Air clutch and brake with selector controls
Bruderer feeder model BBV202-120 mounted on right side
Top driven design
Bruderer controls with console
Voltage: 480 V
Cleaned and painted with 2-part epoxy (Bruderer green)
Inspected and repaired by Bruderer Huntsville technician
Wintriss Smart PackPro DSI-2 die protection & cams (optional, to be quoted)
