Bruderer BSTA 30V 30 tons
AMERICA North (USA-Canada-Mexico)

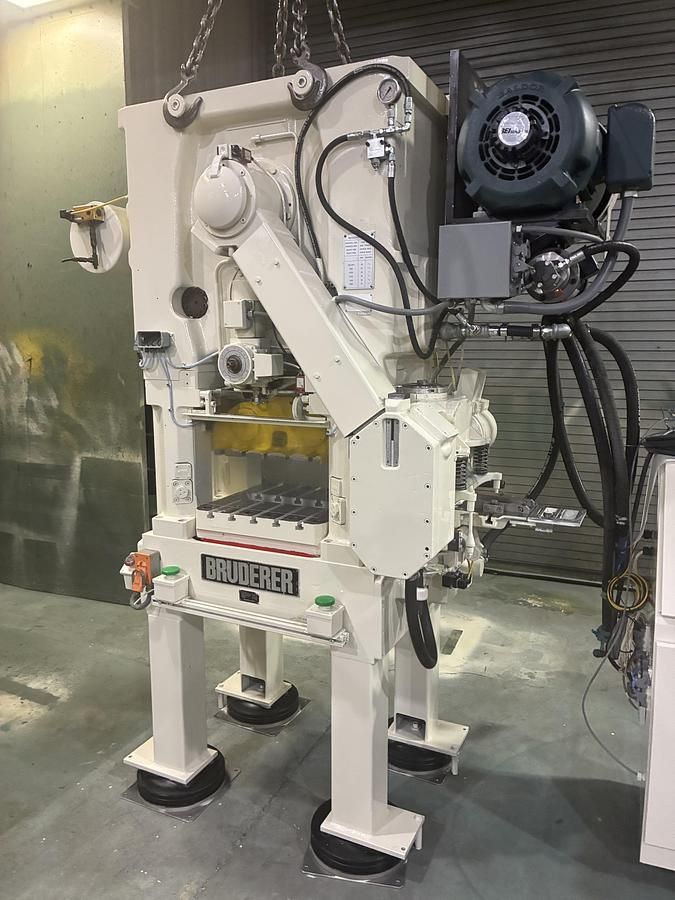

BRUDERER BSTA 30V
Capacity: 30 tons
Stroke: 0.5"–1.5"
Shut height over bed: 9.17"
Adjustment: 2"
Bed area (L-R x F-B): 20.86" x 20.86"
Slide area (L-R x F-B): 20.86" x 14.17"
Variable strokes per minute: 100–1500
VFD controlled main motor (new)
Separate ram-lock pump (new)
30HL oil-pump with new motor (new)
ROSS double safety valves (new)
Pneumatic components (new)
Press-mounted operator controls (new)
All electrical components (new)
Ram removed and re-ground
Bolster plate re-ground
Feeder checked
Mechanically checked out
T-slotted bolster plate
Cylindrical post guides
Air clutch and brake with selector controls
Bruderer feeder model: BBV202-120
Top-driven design
Press cleaned and painted (2-part epoxy: Bruderer green or tan)
All press features and functions in good running order
Mechanically and electrically inspected
Inspection report by Bruderer service technician
OEM parts used if replacements required
Video of press running before shipment
OEM warranties extended for new parts
