Bruderer BSTA 50 USL 50 T

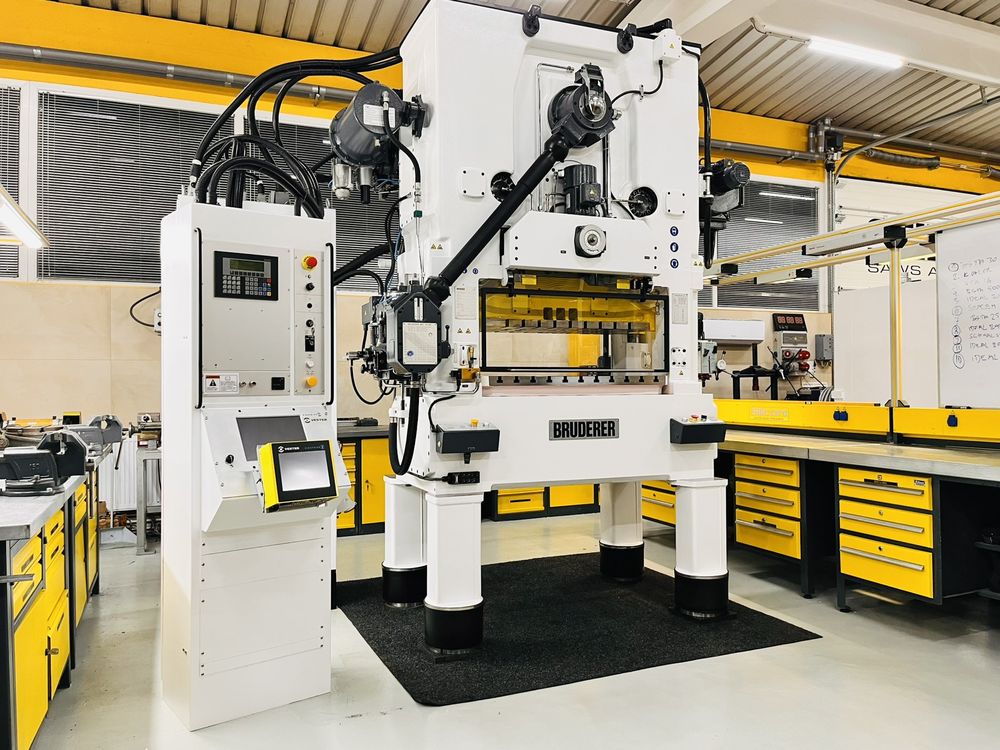

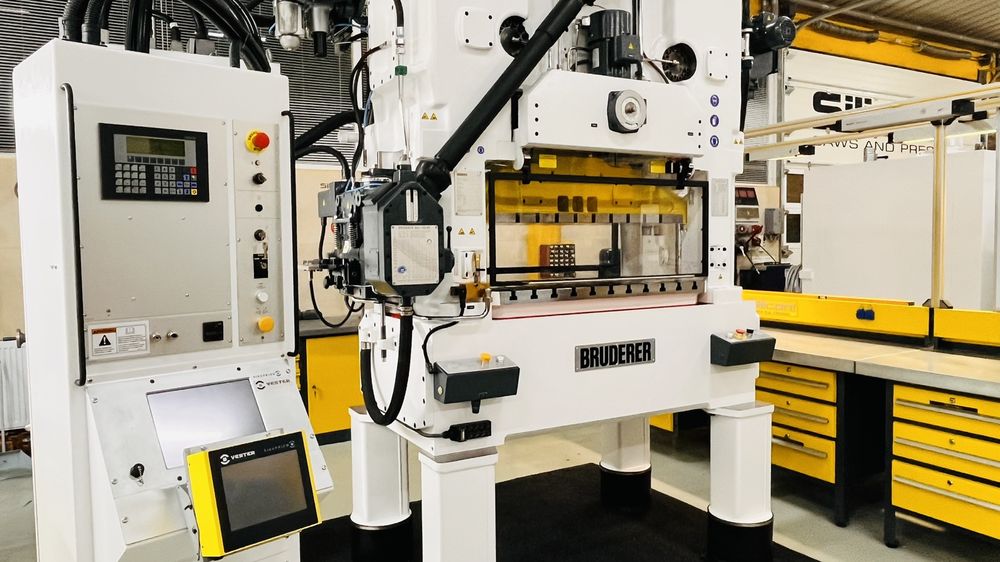

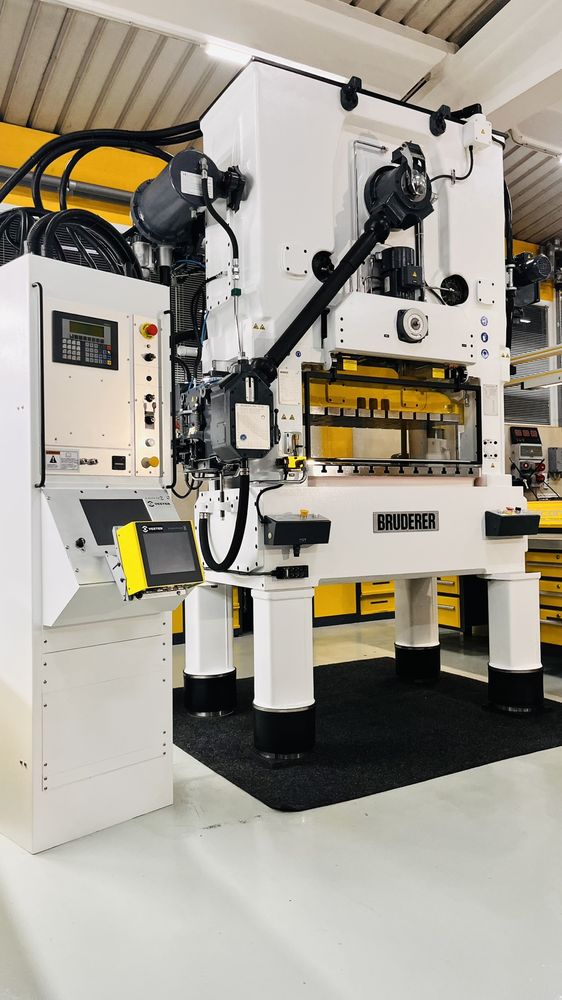

FOR SALE: BRUDERER BSTA 50USL High-Speed Stamping Press
With Automatic Strip Feeder BBV 190
500 kN | 100–1120 spm | Fully automatic | Top-tier Swiss quality

Technical Highlights:
Nominal force: 500 kN
Stroke rate: 100–1120 strokes per minute

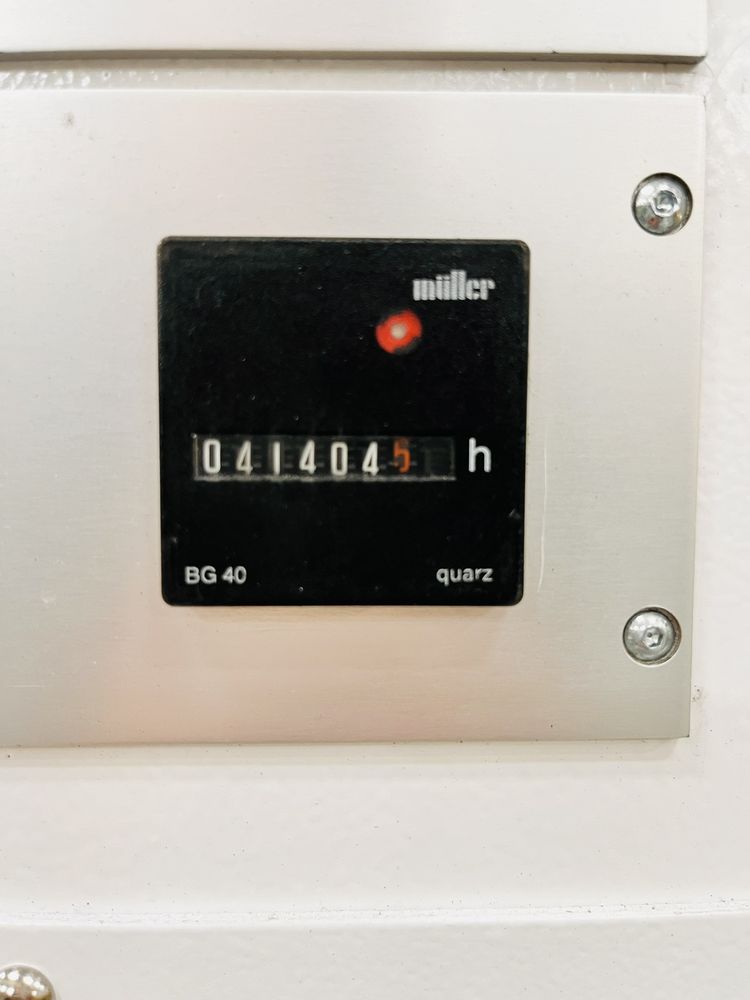

Working hours: 41000 h
Main motor: 22 kW
Control voltage: 24V DC
Power connection: 400V / 50Hz / 62 kVA
Adjustable stroke: 16 / 19 / 25 / 32 / 38 /44 / 51 mm
Shut height adjustment: 64 mm
Working Dimensions:
Max tool installation width: 1100 mm
Strip pass width: up to 256 mm

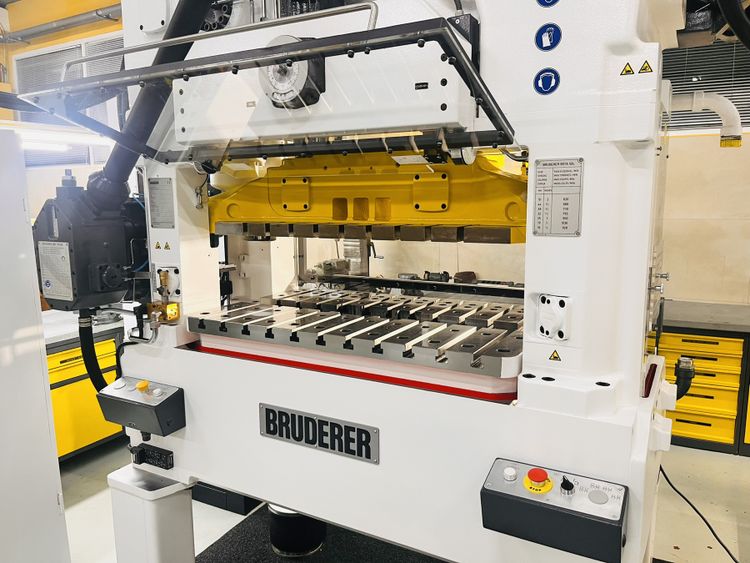

Ram area: 980 × 420 mm

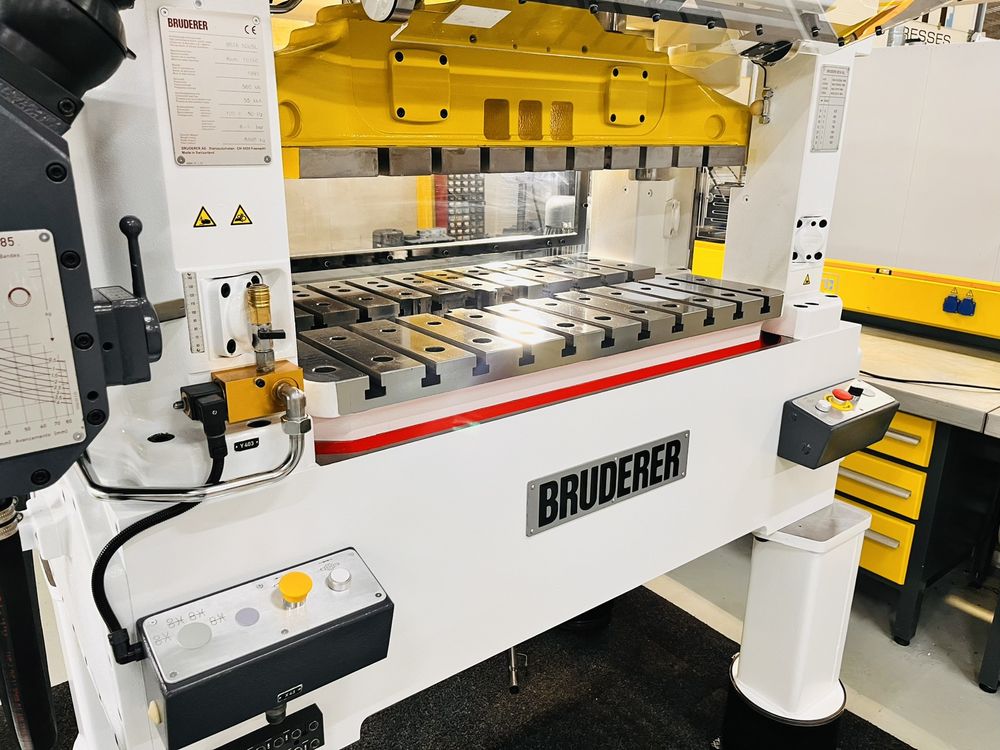

Table area: 1080 × 650 mm
Strip entry height adjustable: 60–140 mm
Max strip width: 120 mm
Max feeding pitch: 85 mm
Max material thickness: 4 mm
Feeding angle: 180 Deg

Machine Dimensions (with BBV 190):
Machine footprint (L × W × H): 2407 × 1278 × 3150 mm
Weight (approx.): 8,000 kg

Equipment Includes:

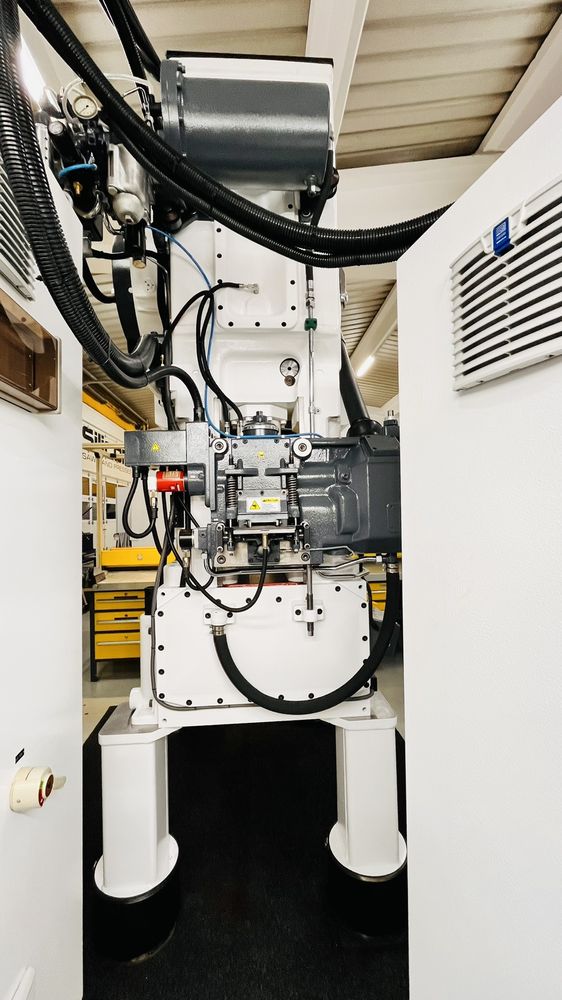

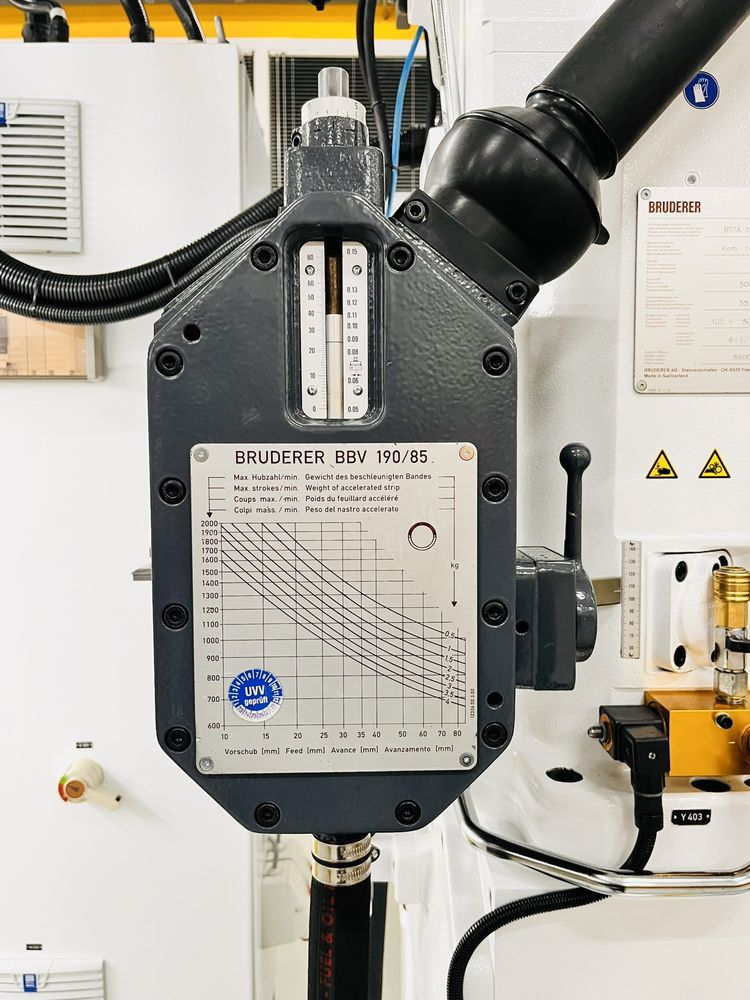

Feeder BBV 190 – fully synchronized mechanical strip feeder system

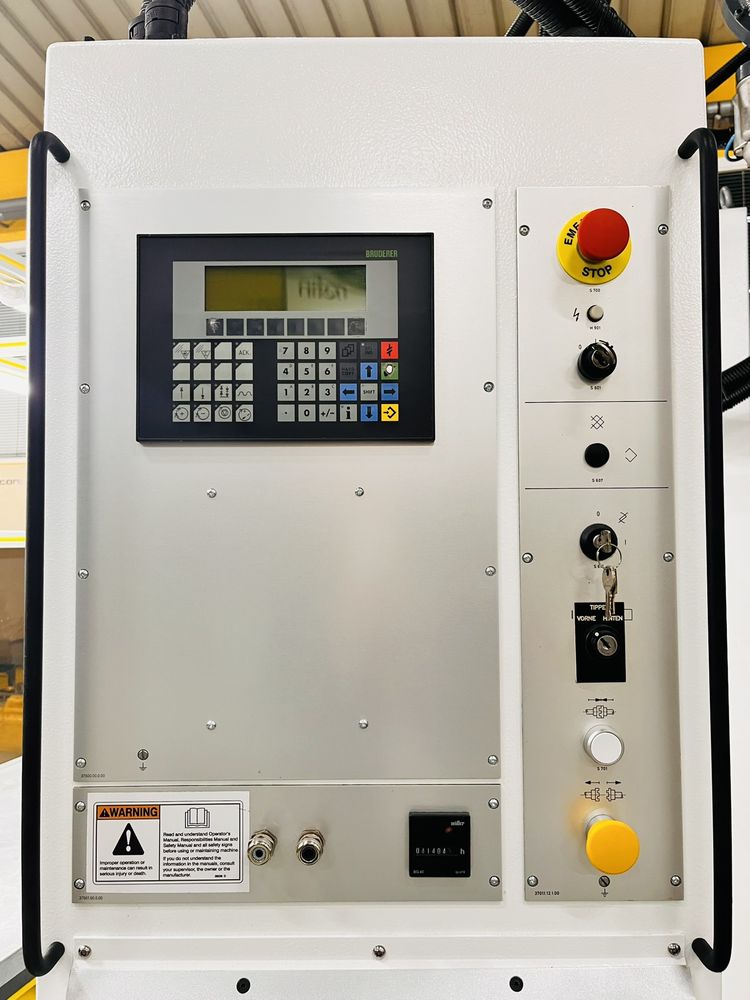

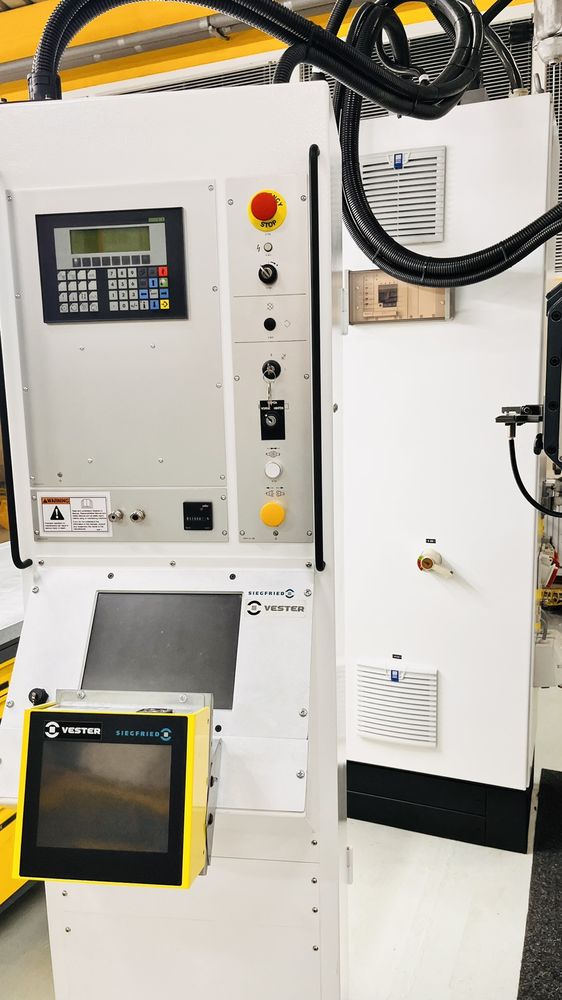

Integrated control cabinet
Pneumatic clutch and brake
Adjustable stroke and shut height
Compressed air connection: 6–10 bar
Oil cooling unit included
Ready for integration with peripheral systems

Condition & Delivery:
Machine in excellent technical and cosmetic condition
Fully serviced and tested
Immediate availability from Europe
Worldwide shipping & installation support available

Contact us today for pricing and further technical details.
Let us help you upgrade your production line with Swiss precision engineering.
