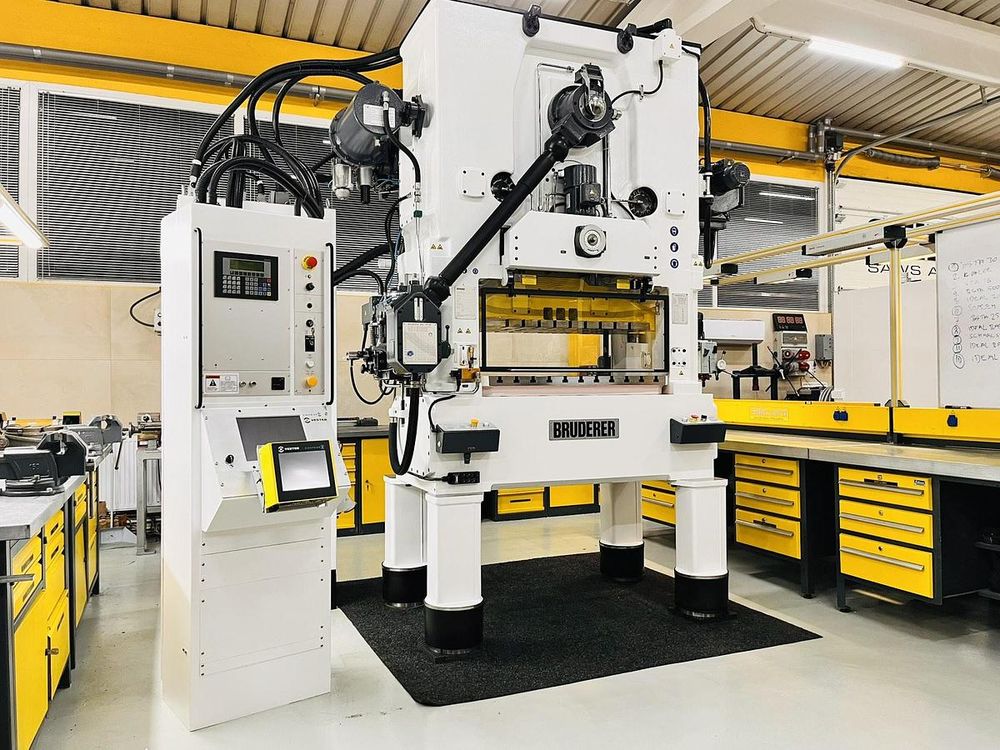

Bruderer BSTA 50 USL 500 kN

BRUDERER BSTA 50 USL
Year 1995 / Reconditioned Year 2025

Nominal force 500 kN
Stroke rate 100–1120 strokes per minute
Working hours 41000
Main motor 22 kW
Control voltage 24V DC
Power connection 400V / 50Hz / 62 kVA
Adjustable stroke 16 / 19 / 25 / 32 / 38 / 44 / 51 mm
Shut height adjustment 64 mm
Max tool installation width 1100 mm
Strip pass width up to 256 mm
Ram area 980 × 420 mm
Table area 1080 × 650 mm
Strip entry height adjustable 60–140 mm
Max strip width 120 mm
Max feeding pitch 85 mm
Max material thickness 4 mm
Feeding angle 180°
Machine footprint 2407 × 1278 × 3150 mm
Weight approx. 8000 kg
Feeder BBV 190 fully synchronized mechanical strip feeder system
Integrated control cabinet
Pneumatic clutch and brake
Adjustable stroke
Adjustable shut height
Compressed air connection 6–10 bar
Oil cooling unit included
CE certificate
Siegfried Vester Swiss tool monitoring system
Parallelism bolster plate tolerance 0.02 mm
Machine fully serviced and tested
Machine in excellent technical and visual condition
Ready for integration with peripheral systems
Immediate availability
Worldwide shipping available
