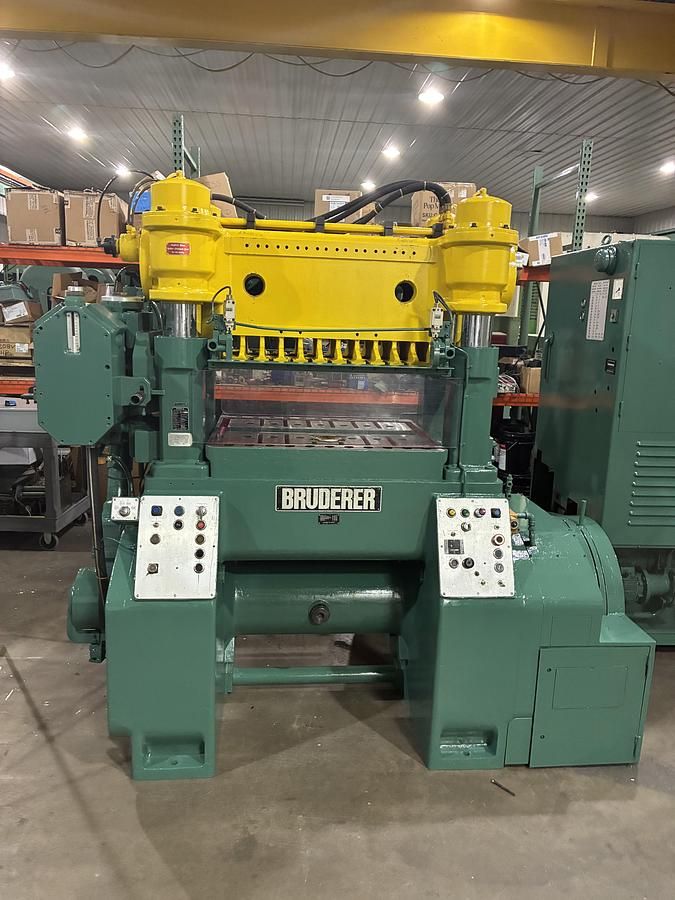

Bruderer BSTA 60HSL 60 tons

BRUDERER BSTA 60HSL

Capacity: 60 tons
Stroke range: 0.75" to 3.00" (10 adjustments)
Ram adjustment: 3.156"
Shut height at 0.75" stroke: 8.5" to 11.5"
Shut height at 3.0" stroke: 7.25" to 10.5"
Bed area: 36" L-R x 31" F-B
Slide face area: 33.5" L-R x 18" F-B
Distance between pillars: 36.5" L-R x 13.4" F-B
Variable speed: 150 to 580 SPM
Max material width (with BBV feed): 11.75"
Max material feed index at 650 SPM: 7.65"
Main drive motor: AC
Approximate weight: 19,200 lbs
Approximate dimensions: 100" L-R x 83" F-B x 87" H

3" thick bolster plate
Hydrostatic variable speed drive
Under-driven design
Bruderer precision roll feed
Cylindrical post guides
Electrical controls
Air clutch and brake with selector controls
