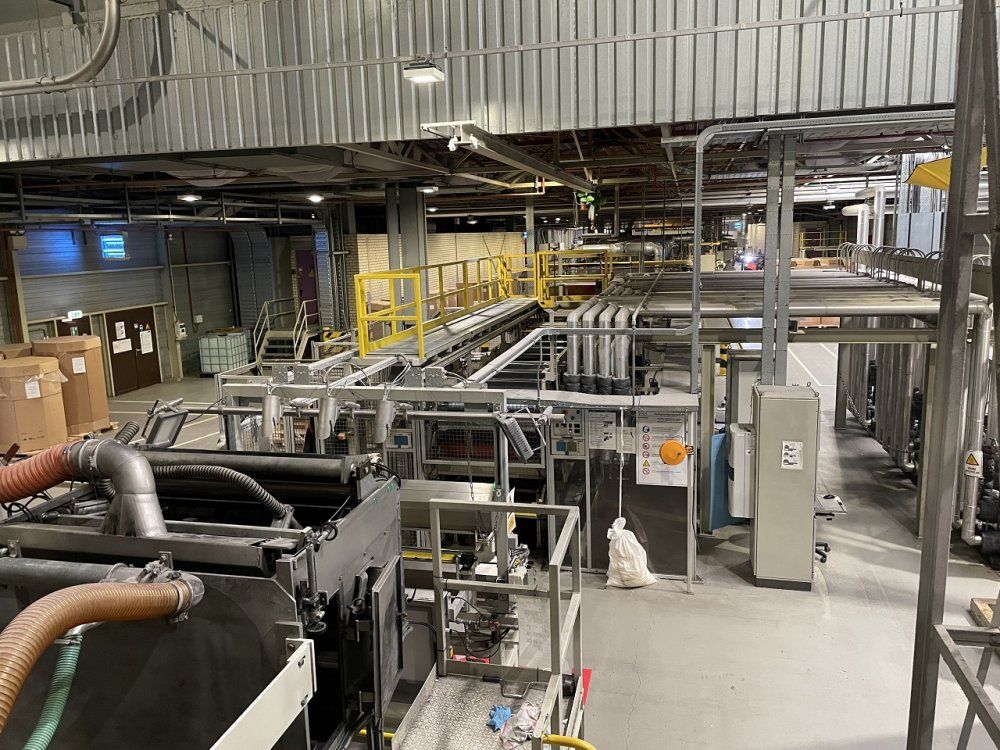

Brückner 5 layers BOPP / BOPET extrusion machine

Number of layers 5
Film structure ABCDE
Material BOPP
Output 360 m/min
Width (mm) 6600

Extruder 1 Description A- Type: single screw, Make Bandera,
output 250 kg/h, dosing system
Extruder 2 Description B- Type: single screw, Make Bandera,
output 300 kg/h, dosing system
Extruder 3 Description C- Main extruder. Type Cascade,
Make Bandera, Output 3.000 kg/h, BMS gravimetric dosing system
Extruder 4 Description D- Type: single screw, Make Bandera,
output 300 kg/h, dosing system
Extruder 5 Description E- Type: single screw, Make Bandera,
output 250 kg/h, dosing system

Head description Cloren automatic die
Die width 1026
Thickness controll system Automatic thickness control. 2 thickness gauges. First afetr casting make: Themrofischer (FAG) beta rays, source: Prometium 147, second after stretching,
Chill roll unit Water bath type. Chill roll diam 2600mm
MDO description 25m preheating, 15 m stretching, 21m anealing
TDO description Bruckner. Cahin type FOK.4.4.4.
Flame treatment Make Esseci
Rewinder width 6600
Rewinder description Turret type
