Brugman Continuous rope bleaching
EUROPE (Western and Northern)
A-frame feed 3.200 mm
Osthoff-Senge Brushing and Singeing 3.200 mm Model PK86
With brushing 3.200 mm and vacuum unit
De-Sizing wash box 3.200 mm (Brugman)
2 x Stainless Steel Mixing tanks for enzymatic desize chemicals
Rope feed to:
4 off Greige Pit with traversing carriage

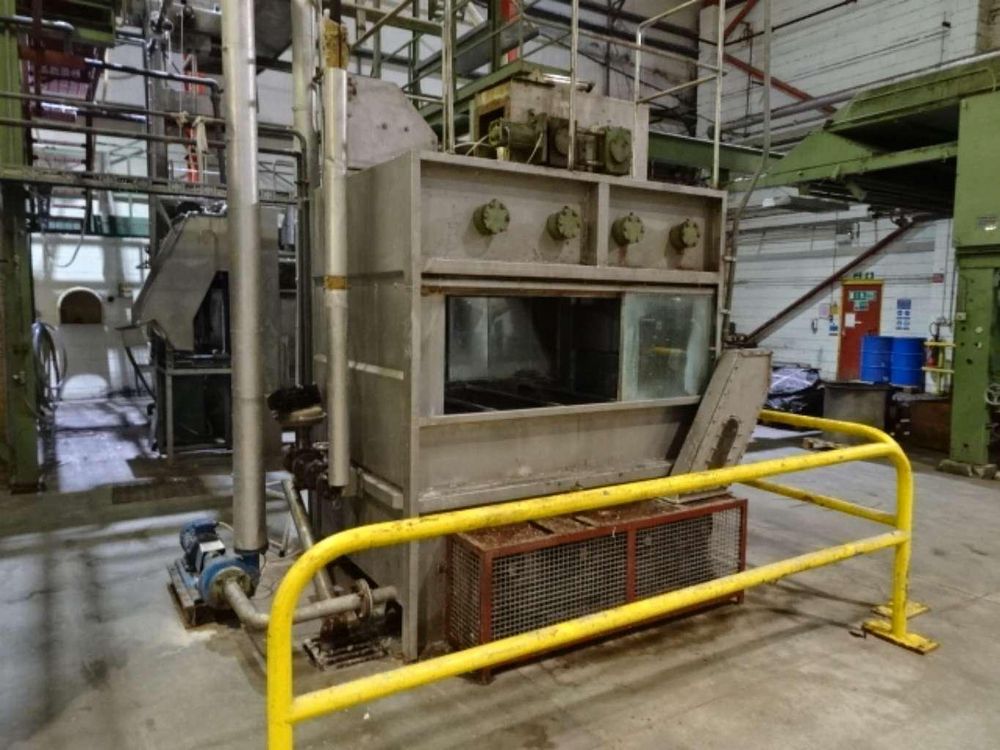

Wash tank no1. (All wash tanks 1.200 mm width for rope fabric)
Caustic Saturation

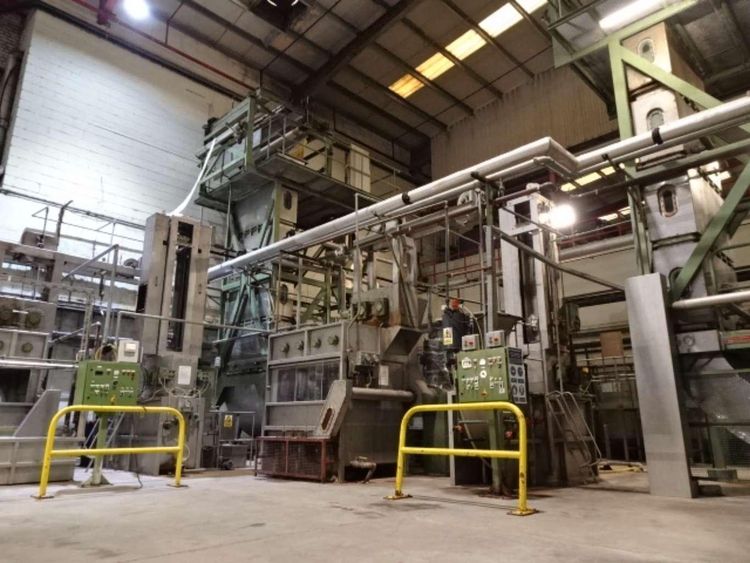

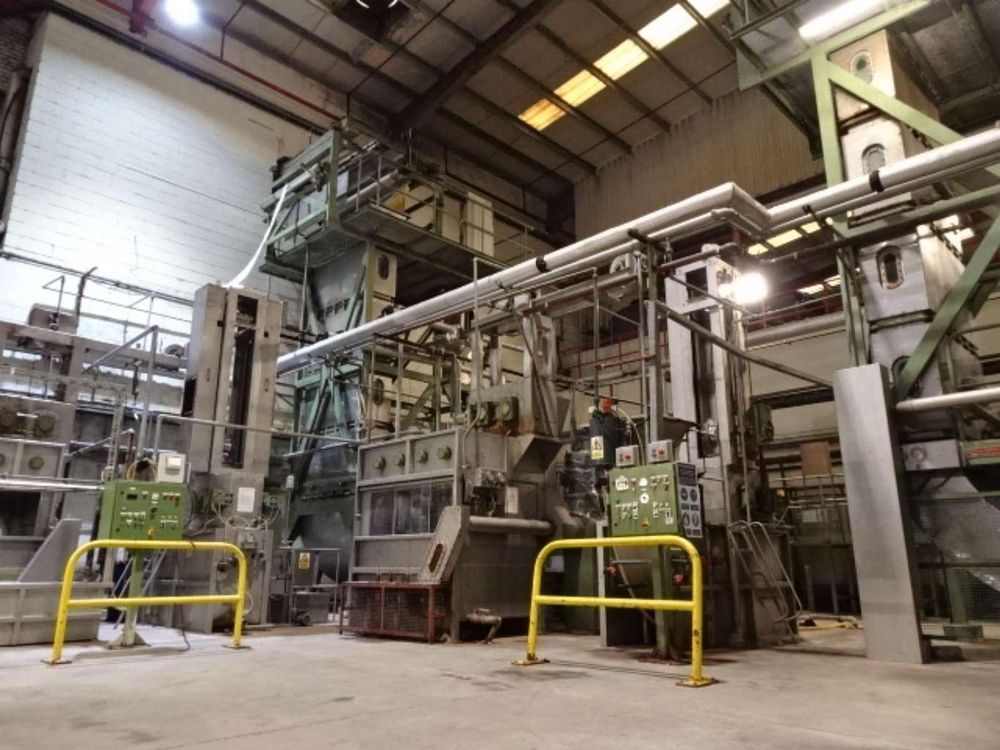

J box steamer no 1.
Wash tank no 2.
Wash tank no 3.
Sodium Hypochlorite Saturation unit
J Box no 2. for dwell (can be used with steam)
Wash tank no 4.
Peroxide saturation unit
J Box Steamer no 3. for final bleach process
Wash tank no 5.
Wash Tank no 6.
Pull Up unit with traversing carriage creel
5 off rope fabric storage pits
Croft pull up unit to:
Hall & Boyden Cloth Opener to 3.200 mm full width
Hall Boyden Squeeze Roller 3.200 mm

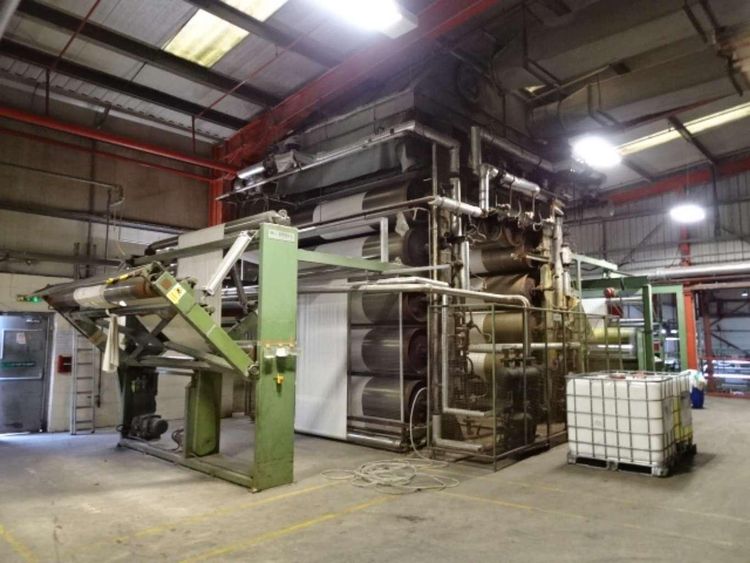

Drying Cylinders (25 off) 3.200 mm
Hall Boyden Batching unit 3.200 mm
8 off Stainless Steel chemical mixing tanks on new Stainless Steel Walkway
The line with suitable guiders can be used for both single width and 3.200 mm fabric.
Greige Fabric Brushing and Knocking 3.200 mm comprising:
Bailing Conveyor – Length Entry track – 7.25mtrs – Coveyor belt 9.5mtrs – Unpacking table 80cm – Belt width 134cm
Brushing/Knocking unit 3.200 mm with
Fabric openers for wide width fabric and
Bianco internal fabric guiding unit.
A frame batching
Batching frame 3.200mm
