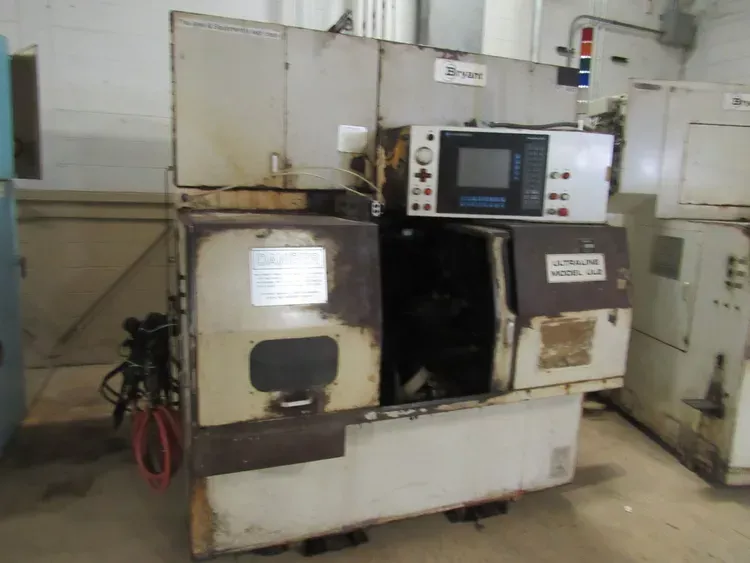

Bryant Grinder Corporation UL2

Max X-axis travel: 2 in
Max Z-axis travel: 10 in
Max X-axis feedrate: 1800 ipm
Max Z-axis feedrate: 520 ipm
X-axis resolution: 0.000004 in
Z-axis resolution: 0.000016 in
Control: CNC
PMAC motion card
Allen Bradley PLC and I/O
Kollmorgen drives and motors
Volkman spindle drive
Minimum bore: 0.4 in
Swing (chucker): 7 in
Max grinding bore (shoe centerless): 5.5 in
Max bore length: 3 in
Workhead swivel: -26°
Max work speed: 1850 rpm
Work drive motor: 1.5 hp
Max spindle speed: 120000 rpm
15 mm roll shoe
HD104 rotary cup dresser
CBN capable wheel
Machine weight: 10500 lbs
