BSG2613C

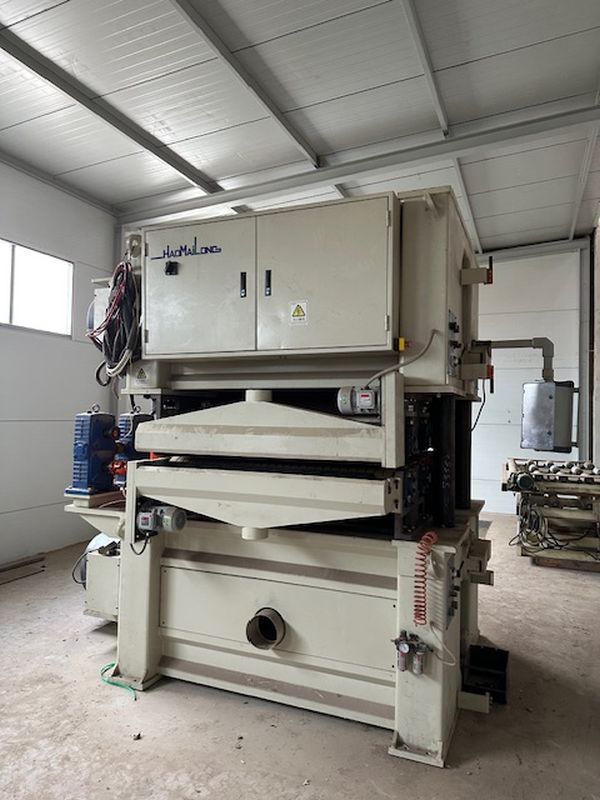

LINYI JIANZHONG calibration sanding machine
- Maximum working width: 1300 mm
- Processing thickness: 5-80 mm
- Processing length: ≥ 780 mm
- Machining accuracy: ± 0.08 mm
- Dimensions of the grinding belt: 1350x2800 mm
- Speed of the grinding belt: 31 m/s
- Roller diameter: 2x Ø320 mm
- Total power: 165 kW
- Main motor power: 2x 75 kW
- Feed motor: 11 kW
- Lift motor: 2x 0.75 kW
- Brush motor: 2x 0.75 kW
- Feed speed: 10-30 m/min
- Operating air pressure: 0.5-0.8 MPa
- Dust collection tank capacity: 24,000 m3/h
- Weight: 14.5 t
- Overall dimensions: 3100 x 2100 x 3000 mm
- Voltage: 380 V, 50 Hz
