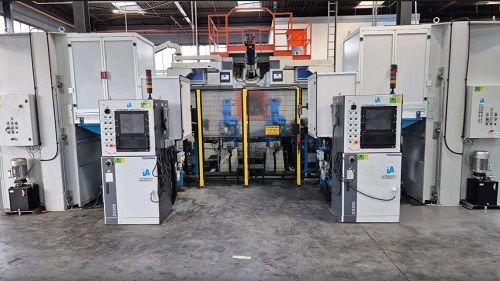

BTB TRO 8S 14U ISO CNEL ROTARY TRANSFER MACHINE

Ref : 2811120-3-CP

Condition : Used

Manufacturer : -

Model : BTB TRO 8S 14U ISO CNEL

Short Description : ROTARY TRANSFER MACHINE

Year(s) : 2017

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Control: FANUC
8 Machining Stations
14 Machining Units
Simultaneous Multi-Axis Machining
Drilling
Milling
Tapping
Turning
Automated Loading System
Automated Unloading System
Integrated High-Pressure Coolant System
Spindle Taper: ISO 40
Diagnostic System
Lifting Unit: ERI-2000
Lifting Capacity: 2000 kg
Lifting Unit Motor: 2.2 kW
Automation System
Dual Yaskawa Motoman MH24 Robots
Robot Payload: 24 kg
Robot Reach: 1717 mm
Robot Repeatability: ±0.08 mm
6-Axis Articulated Robots
Robot Controller: DX200 or NX100
J1 Speed: 170°/s
J2 Speed: 170°/s
J3 Speed: 175°/s
Machine Weight: 23000 kg
