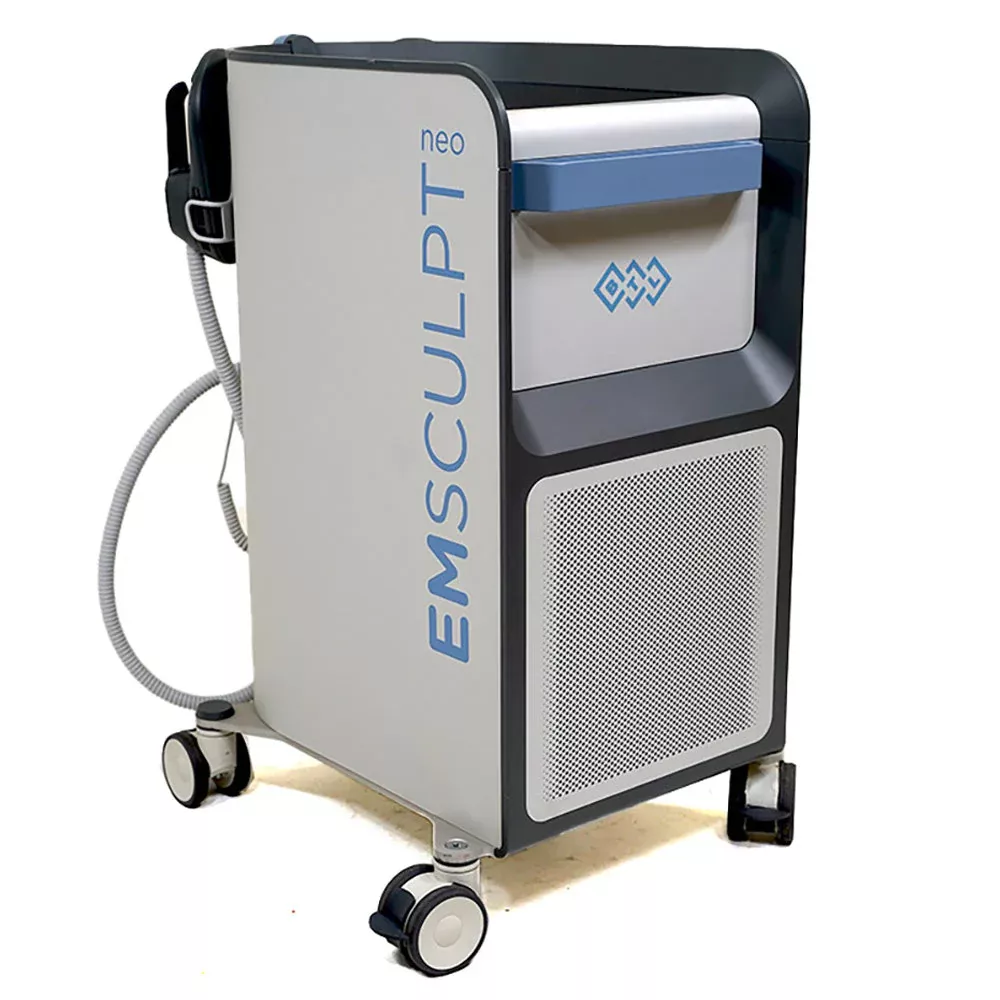

BTL Aesthetics Emsculpt NEO Ab & Arm Applicators

EMSCULPT NEO builds off the legacy of its predecessor,
EMSCULPT, by simultaneously emitting both radio frequency
and high intensity electromagnetic energies.
The end result is more fat reduction and muscle growth,
than any single gold standard product, for less time and less money.

Includes:
Base Unit
Abdomen Paddles: Remaining Usage: 100%
Arm Paddles Remaining Usage: 80%
Patient Button
Patient Belts
Power Cord
Manual

Operating conditions
Ambient temperature 64 °F to 86 °F(+18 °C to +30 °C)
Relative humidity 30 % to 75 %(non-condensing)
Atmospheric pressure 700 hPa to 1060 hPa
Position Vertical(on castors)
Type of operation Continuous

Transport and storage conditions
Ambient temperature 14 °F to 131 °F(-10 °C to +55 °C)
Relative humidity 10 % to 85 %(non-condensing)
Atmospheric pressure 650 hPa to 1100 hPa
Position Vertical
Other conditions Transport only in the supplied packaging
Power supply 3000W(peak)
Maximum input 100 V to 230 V AC, 50 Hz 100 V to 130 V AC, 60 Hz
Supply voltage, Frequency Mains impedance max. 0.20 0.
It is recommended to supply the device from
the separate power circuit. If the RCD is used,
it shall also be separate and have time-delay function.
Protection class II (connection to protective earth for
functional reasons only)
External fuse 2x T10 AH/ 250 V, 5x20 mm
Switch On the rear panel, marked by symbol C)
Mains power switch On the rear panel, positions O(off) and I(on)

Classification
Applied parts type BF/ Single-patient
Applied part application side(application area) of the applicator
Number of channels Two
Essential performance according to IEC 60601-1
Output radiofrequency power reduction

Design
Weight 155 lb(70 kg)/ 200 lb
(91 kg) including packaging and accessories
Dimensions(w x h x d) 23 x 39 x 29 in(592 x 985 x 730 mm)
Packaging dimensions(w x h x d) 24 x 53 x 31 in(600 x 1350 x 800 mm)
Internal protection rating IP20

Display
Graphic color touch screen 15.6"/ 39.6 cm, 1920 x 1080 px.

Device Parameters
Maximum therapy time(±3 %) 30 min Sine, biphasic
Magnetic field pulse 0-30W(per channel)
Radiofrequency intensity range(±20 %), see Note 1 107.6 °F(42 °C)
Skin surface temperature limit(±1.8 °F, ±1 °C), see Note 4 104 °F(40 °C)
RF frequency 27.12 MHz ± 0.163 MHz.
Total RF output power(±20 %), see Note 3 60W(2x30W@ 500)
RF mode of operation Bipolar

Applicator 899-AP-C-1 Paramerters
Magnetic field pulse width(±20 %) 280 µs
Magnetic field intensity range(±20 %), see Note 2 0.5 to 1.8 T
Magnetic field Pulse repetition rate(accuracy ±5 %) 1-150 Hz
Maximum RF power(±20 %) 30W
Cable length(±10 %) 4.76 ft(1.45 m)

Applicator 899-AP-C-2 Parameters
Magnetic field pulse width(±20 %) 190 µs
Magnetic field intensity range(±20 %), see Note 2 0.7 to 2.0 T
Magnetic field Pulse repetition rate(accuracy ±5 %) 1-50 Hz
Maximum RF power(±20 %) 30W
Cable length(±10 %) 4.76 ft(1.45 m)

Applicator 899-AP-M-2 Parameters
Magnetic field pulse width(±20 %) 190 µs
Magnetic field intensity range(±20 %), see Note 2 0.7 to 2.0 T
Magnetic field Pulse repetition rate(accuracy ±5 %) 1-50 Hz
Cable length(±10 %) 4.76 ft (1.45 m)

899-ACC-1 Therapy Discomfort Button
Maximum allowed cable length 4.9 ft (1.5 m)
PowerCord 125 V, 15 A(250 V, 10 A), 10 ft(3.1m)
