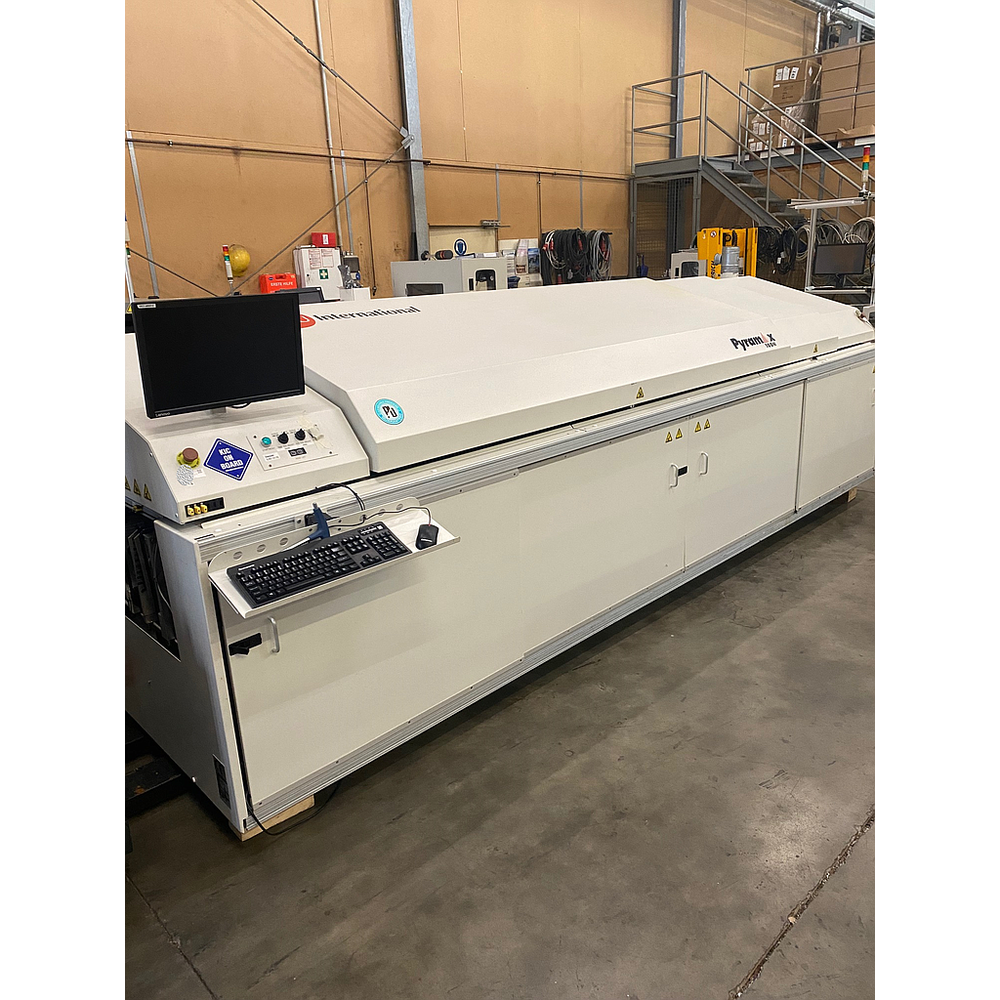

BTU Pyramax 100N

BTU - Reflow oven type PYRAMAX 100N ROHS
Refurbished used equipment
- Vintage : 2014
- Dimension : (L x W X H) : 4660 x 1550 x 1530 mm
- Pin chain conveyor
• Conveyor width : 51 - 457 mm
• Motorized conveyor width ajustment
• Board supporting pins lenght : 5 mm
• Automatic greasing system

- Central support chain
• Positioning motorized central support
• Automatic greassing system

- Conveyor speed : 25 to 152 cm/min
- Conveyor direction : Left to Right

- Heating length : 2540 mm
• 8 upper (top) zones / 8 lower (bottom) zones
• Max. heating temperature : 350°C

- Cooling zone length : 610 mm
• Top and bottom cooling by forced air

- Flux management with trap system
• External water supply for flow trap and cooling

- Operating under azote or air
• Gas barrier inlet - Lenght : 450 mm
• Gas barrier outlet - Lenght : 450 mm

- Closed Loop convection control
- Board counter
- Hight and low alarm management
- Limitation of absorbed power at start-up
- Opening and closing motorized vault
- PC & software under Windows 7
- Operator screen for supervision with friendly interface
- Alarme buzzer
- 4 emergency stop
- Exhaust : 2 output Ø 125 mm - 2 x 470 m3/h with registers
- Power inlet : 400 Volts (3P + N + T)
- Inlet air or azote : 6 bars
- CE certificates
- Color : RAL 9002
