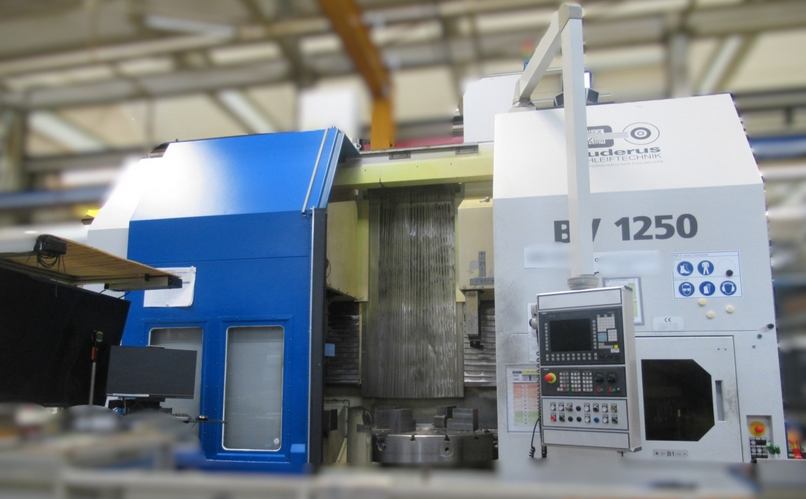

Buderus BV 1250
Ref :
2740126-3-GO
Condition :
Used
Manufacturer :
Buderus
Model :
BV 1250
Year(s) :
2008
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Max. workpiece diameter: 1000 mm
Min. workpiece diameter (internal hobbing): 100–500 mm
Workpiece length max.: 500 mm
Swing diameter: 1250 mm
Workpiece spindle flange diameter: 520 mm
Workpiece spindle speed range: 0–440 rpm
Control: Siemens Sinumerik 840 D
Z1/Z2 axis travel: 1000 mm
X1/X2 axis travel: approx. 1300 mm
Z axis speed: 0–30 m/min
X axis speed: 0–50 m/min
Feed speed: 0.01–15 mm/min
Feed dependent on stroke: 0.0005–0.1 mm
Workpiece spindle positioning: C axis
Grinding spindle
Kaiser dresser
Tool measuring probe
Filter system
Flushing nozzle connections
2 Capto holders
1 set of jaws for chuck
Technical documentation
Weight: approx. 25 t
Dimensions: 5100 x 3034 x 4500 mm
