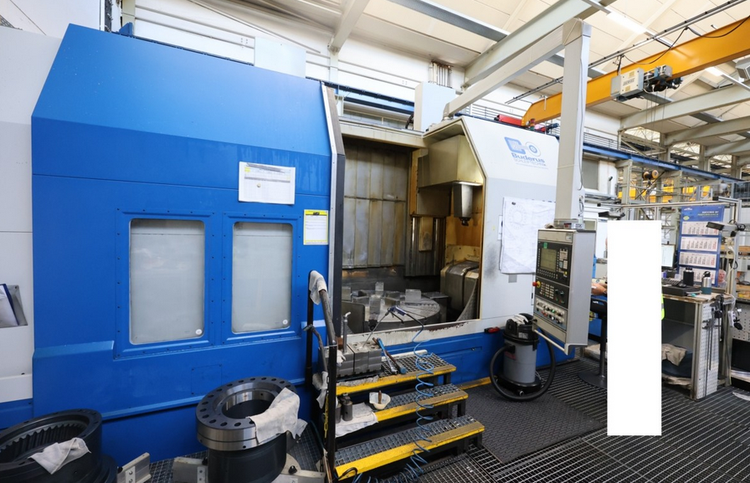

Buderus BV 1600
Ref :
2739657-3-GO
Condition :
Used
Manufacturer :
Buderus
Model :
BV 1600
Year(s) :
2007
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Max. workpiece diameter 1400 mm
Workpiece length bore grinding 300 mm
Workpiece length turning 500 mm
Swing diameter 1600 mm
Workpiece spindle speed range 0-400 rpm
Boring diameter 100-500 mm
Total power requirement 185 kW
Machine weight approx. 35 t
Table stroke Z1/Z2 axis 1000 mm
Table stroke X1/X2 axis approx. 1400 mm
Table speed Z axis 0-30 m/min
Table speed X axis 0-60 m/min
Workpiece spindle flange diameter 520 mm
Infeed speed 0.01-15 mm/min
Control Siemens Sinumerik 840 D
Grinding spindle
Kaiser dresser
Tool measuring probe
Filter system
Flushing nozzle connections
2 Capto holders
1 set of jaws for chuck
Documentation
