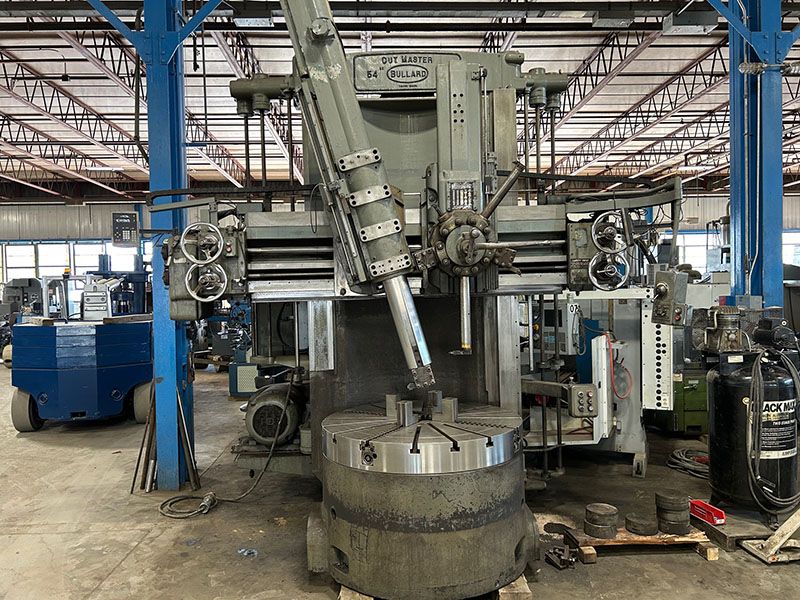

Bullard 54" CUTMASTER HIGH COLUMN Chuck diameter: 54 in

Ref : 2788879-3-CP

Condition : Used

Manufacturer : Bullard

Model : 54" CUTMASTER HIGH COLUMN

Short Description : Chuck diameter: 54 in

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Max swing: 62 in
Max height under rail: 68 in

Spindle speed range: 4.4 – 160 rpm
Table motor power: 30 hp

Feed range: 0.0026 – 0.125 ipr

Turret vertical travel: 30.375 in
Turret swivel: 30° left and right
Ram head vertical travel: 41 in

5-sided turret
Long cylinder ram head
TDA attachment on ram head gearbox
4-jaw independent chuck
Digital readout system
Main drive motor 30 hp

Machine dimensions: 115 x 136 x 148 in
Machine height: 176 in
Weight: 55000 lbs
