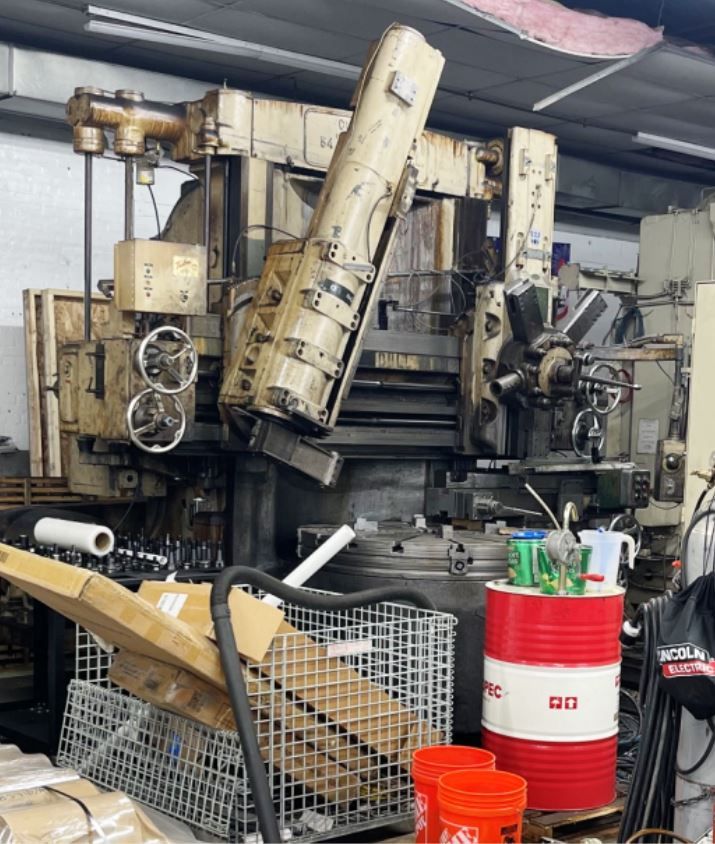

Bullard Cutmaster 54" Table diameter: 54"

Maximum swing above table: 58"
Maximum swing below table: 62"
Maximum distance table to rail: 44"
Maximum distance table to turret face: 55-1/4"
Turret head vertical travel: 30-3/8"
Turret head tool post holes: 2-3/4"
Ram head vertical travel: 30-1/2"
Maximum space table to underside of side head slide: 34-7/8"
Side head vertical travel: 44-1/4"
Side head horizontal travel: 27"
Table speed: 3.3–120 RPM
Feed rate: 0.0026–0.500 IPR
Main motor: 30 HP
54" 4-jaw independent chuck
Swiveling 5-position turret head
Swiveling ram head
Side head
Coolant pan
Coolant piping
Dimensions: 124" × 116" × 131"
Weight: 48,600 lb
