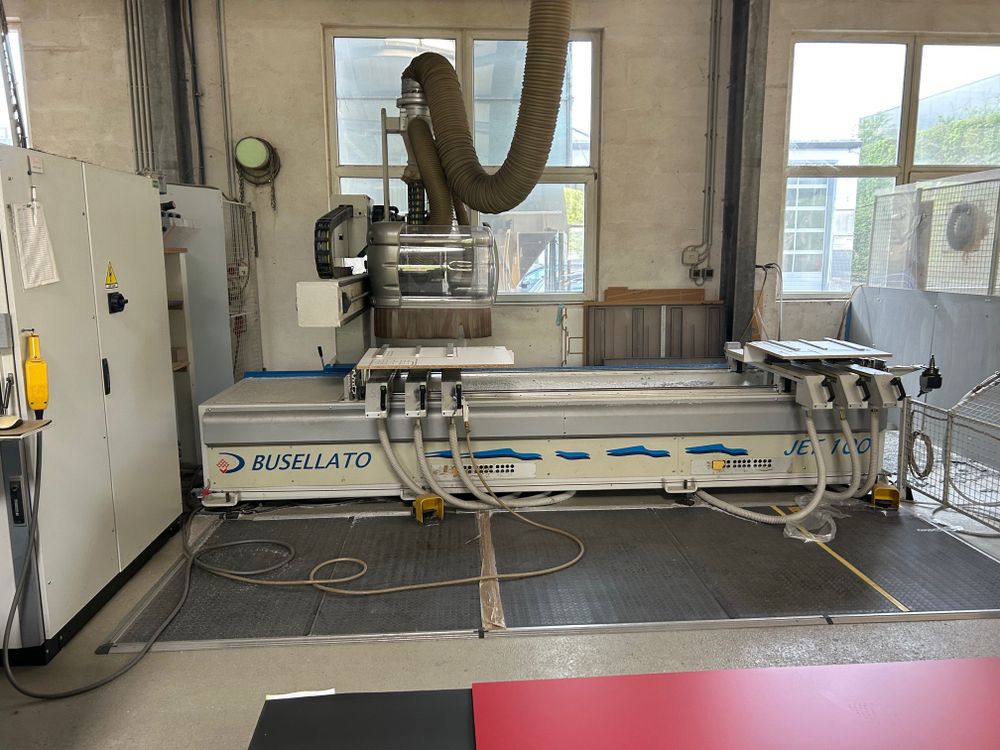

Busellato JET 130

Used machine
Equipment and technical specifications:
Console Machine (6 pieces)

Method dimensions:
x = 3490 mm
Y = 1690 mm
Z = 205 mm

Processing dimensions:
X = 3050 mm
Y = (Max. Milling size - tool radius) 1345 mm
Z = 150 mm

Drill head TF 20
Power 2.2 kW
8 Vertical spindles, spindle spacing 32 mm in X
6 vertical spindles, spindle spacing 32 mm in Y
2+2 horizontal spindles in X
1+1 Horizontal spindles in Y
with integrated groove saw blade 120 mm
with electric milling spindle 9.2 kW with ISO-30 mount
with C-axis
with angle unit
with tool changer 12-speed
with tool changing station for angle units
with vacuum pump 80-100 m3/h
Total connection value 16 kW
Compressed air 6 bar
Compressed air consumption 210 NL/m
Extraction nozzle 250 mm
Extraction volume 5300 m3/h
Extraction speed 30 m/sec
Dimensions: 5940 x 3800 x 2510 mm
Weight: 3700 kg
