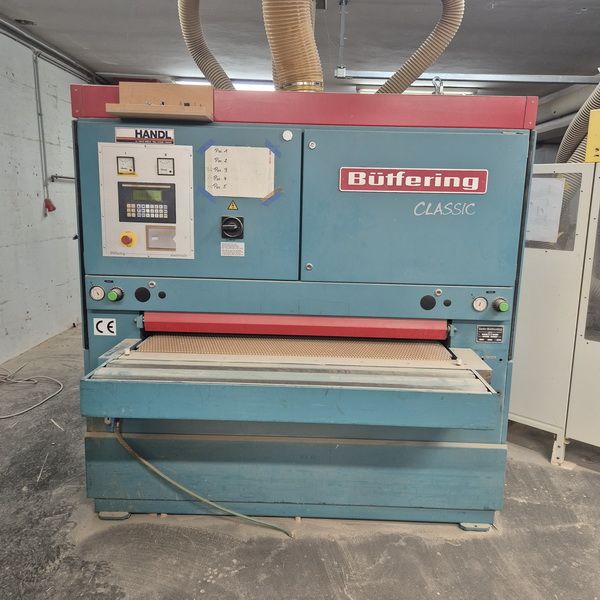

Butfering Classic 213

Broadband grinding machine
Grinding width 1300 mm
tolerance-precise calibration with the contact roller
grinding of solid wood,
Grinding of veneered workpieces with both
Link pressure bar
Sanding belt width mm 1370
Sanding belt length mm 1900
Extraction capacity m3/h 3650/4500
min./max. mm 3-150
Air connection bar 6-8
Total connection value kW 24
Air requirements I/min. 20
Weight kg 3300

1. Unit Type C combined contact rolling grinding shoe unit with
-Steel contact roller profiled.
-electronically controlled link grinding shoe, element width 50 mm
-Engine power 11 kW

2. Aggregate Type E
-Grinding shoe unit
-electronically controlled link pressure bar, element width 25 mm
-Engine power 11 kW

- stepless controllable grinding belt speed 2 to 18 m/s via frequency inverter
-Same and counter-run
-Band blowing device

Transport carpet with stepless feed 2.5 – 13 m/min
Control of the suction slides
Roller tables in the inlet and out

Workpiece cleaning :
Rotating cleaning brush 0.75 kW
Machine tested for function
