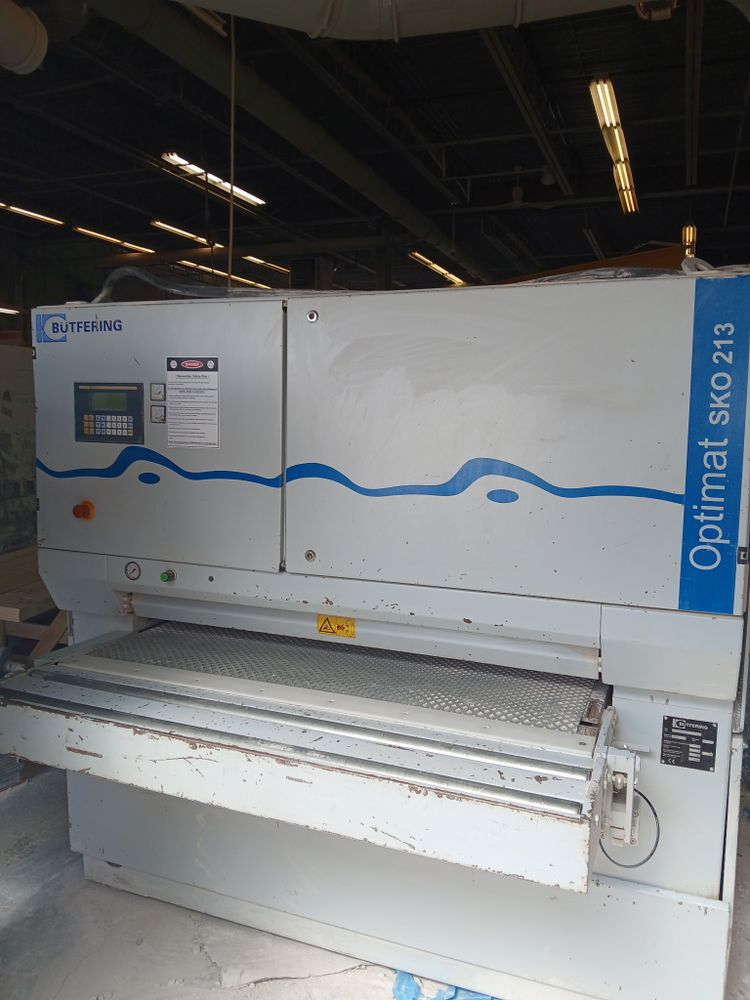

Butfering, Homag Optimat SK0213/RC
AMERICA North (USA-Canada-Mexico)
Optional features include:
• Panel cleaning brush with dust hood
• 300 mm (12") roller table out feed extension
• 300 mm (12") roller table infeed extension
Standard features:
• First sanding head with grooved steel contact roller with abrasive belt grit compensation
• Second sanding unit, rubber contact roller 85° Shore hardness, variable belt speed 2-18m/s, and electronically controlled segmented pad
• Air jet belt cleaner work piece activated
• Electronic belt oscillation
• Pneumatic belt tensioning with integrated belt edge compensation
• Automatic machine control with display and 50 sanding programs
• Safety interlocks and limit switches for protection of all access and operation
• Work piece pressure guide rollers before, between and behind sanding unit
• Efficient dust extraction outlets (4)
Specs:
Working width: 53"
Working height: 1/8"-6"
Passline height: 35.5"
Drive motor - 1st head: 25hp
Drive motor - 2nd head: 20hp
Total load: 48hp
Dust outlets: 2 x 4"
Dust outlets: 2 x 8"
Variable feed speed: 8-40 FPM
