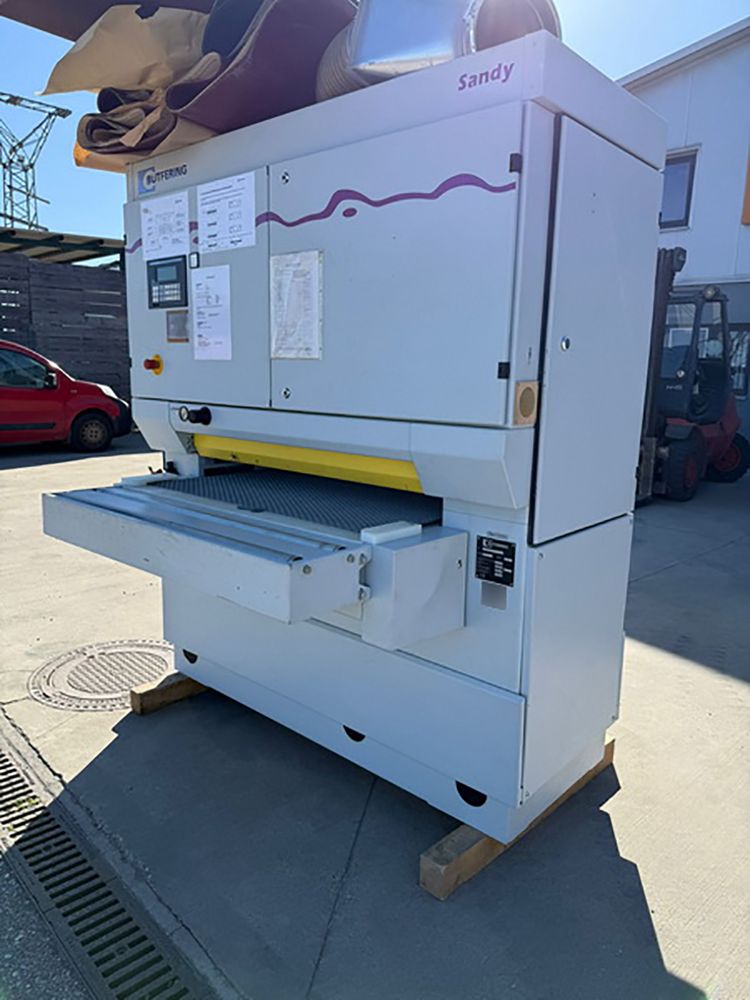

Butfering Optimat SBC 111 C Sandy

Working width 1100mm
Sanding belt width 1120 mm
Sanding belt length 1900 mm
Top part delivery, constant table
Grinding unit type C
-1 combined contact roller grinding unit, with grinding belt grain compensation and calibration device
SWP steel contact roller (profiled)
EG 25 – electronically controlled link grinding pressure beam in compact design, element width 25 mm
A 3 – 3x pole switchable drive motor 3.7/7.5/15/ kW
Sanding belt speed 4.5/9/18 m/s
BV- Band blow-off device
TE 1 – Terminal with 50 freely programmable grinding programs for automated machine control
STV belt feeder (carpet feed) driven by infinitely variable geared motor, feed speed 2.5 – 13 m/min
RTE roll tables in in and out
FB- rotating cleaning brush on the outlet side
Total power approx. 16 kW
Operating Instructions
new transport carpet
