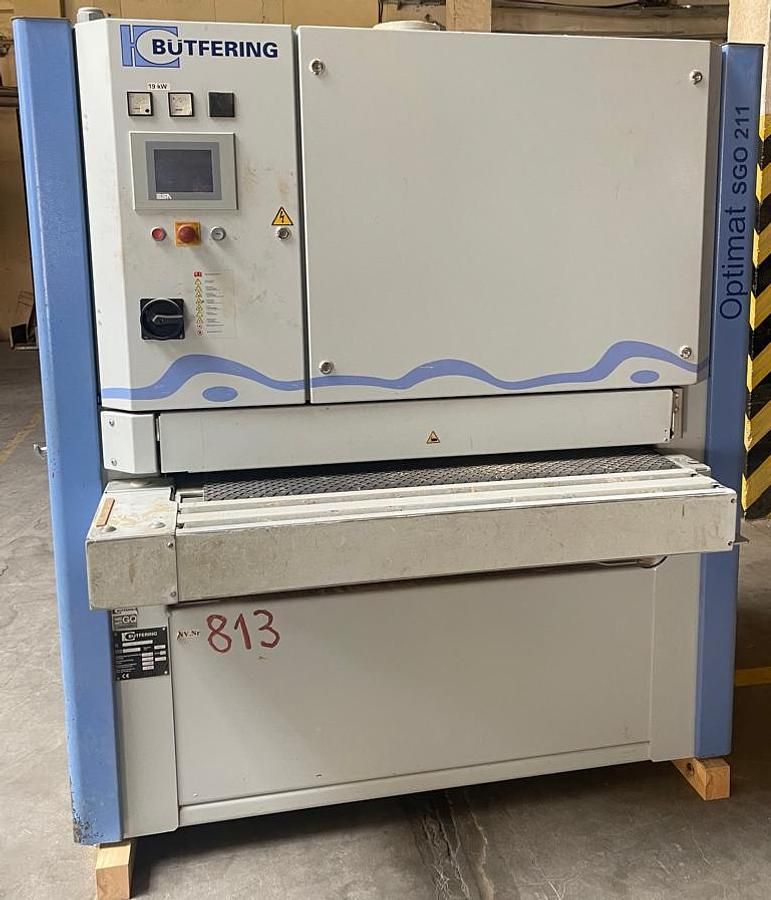

Butfering Optimat SGO 211/RC

Wide belt grinder
- Number of grinding units: 2 pieces
- Year of manufacture: 2008
- Working width: 1,100 mm
- Sanding belt width: 1,120 mm
- Sanding belt length: 1,900 mm
- Workpiece thickness: 3-160 mm
- Feed rate: 2.5-13 m/min.
- Weight: 1,800 kg
- Table height adjustment

Standard equipment:
- Automatic workpiece thickness adjustment
- Stepless feed rate via frequency converter.
- 125 grinding programs can be stored
- Wear-free braking device

1. Grinding unit (R)
- Calibration roller
- Profiling steel contact roller
- Diameter 160 mm
- Drive motor: 15 kW

2. Grinding unit (C)
- Combination unit with roller and grinding pad
- Rubberized contact roller 65 Shore
- Contact roller diameter 160 mm
- Electronic chain pressure beam with
segment width 35 mm.
- Belt speed: 12 and 21 m/s
- Tolerance compensation up to 1 mm
- Suitable for veneered surfaces and solid wood.
- Drive motor: 11 kW

- Total connected load: approx. 28 kW
- Operating voltage: 400 V / 50 Hz.

- Compressed air consumption at 6 bar, 20 L/min.
- Belt blow-off device per stroke 440 L/min.

- Exhaust air volume: approx. 2,880 m3/h/ at 20 m/s
- Exhaust fitting:
1 x Ø 160 mm (grinding unit, roller)
1 x Ø 160 mm (grinding unit, pad)

Dimensions:
- Length: 1,700 mm
- Width: 1,850 mm
- Height: 2,100 mm
