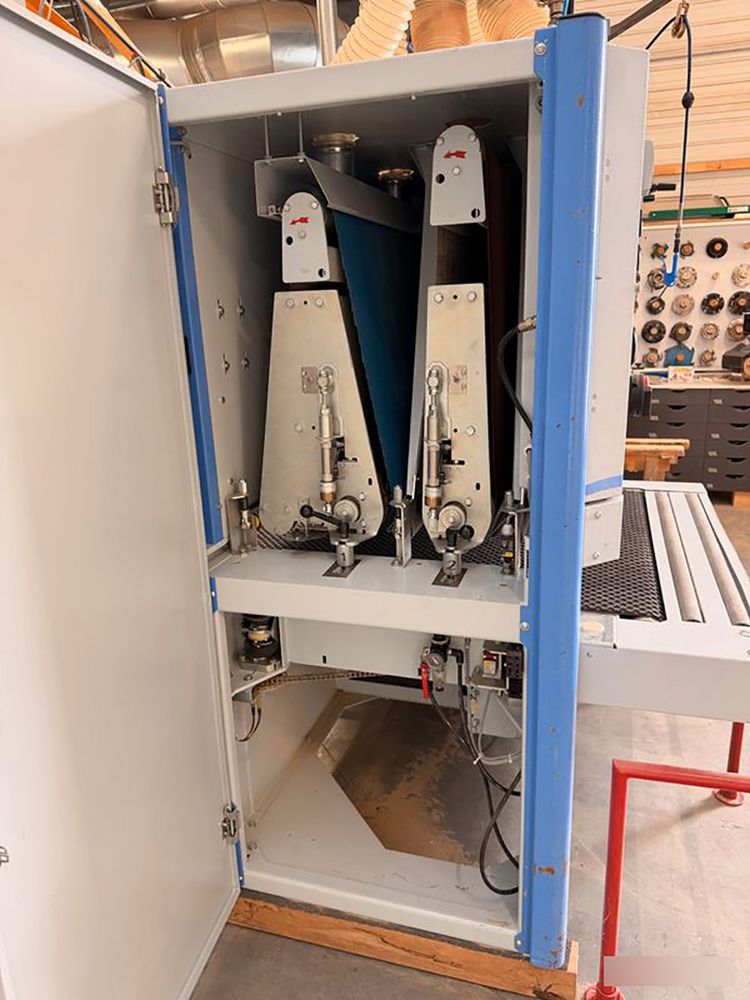

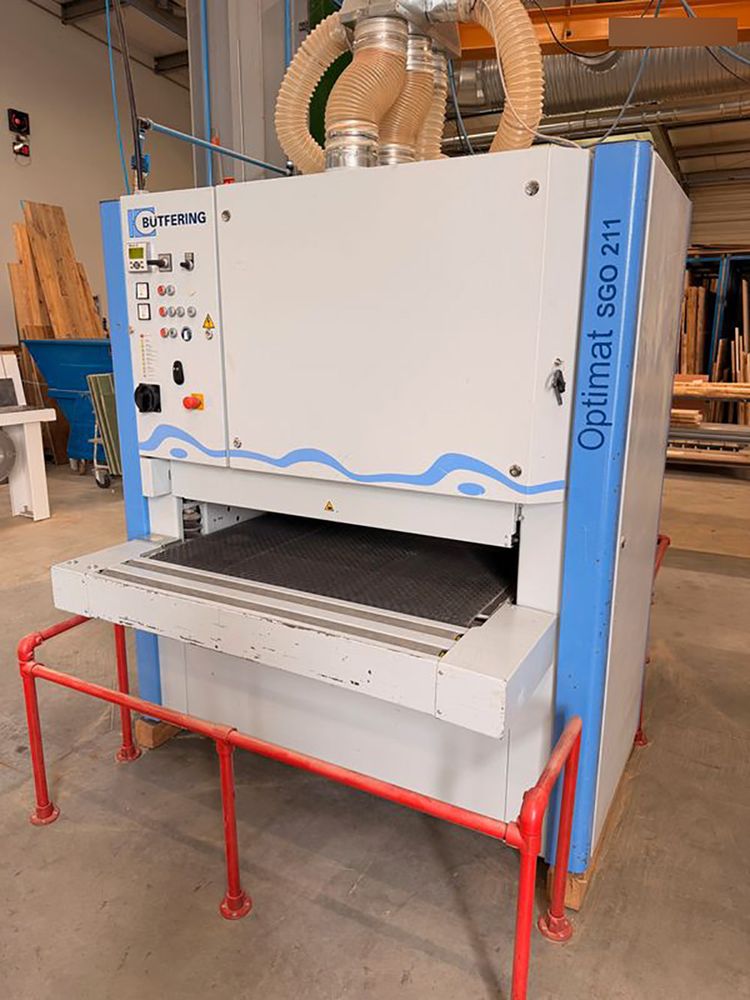

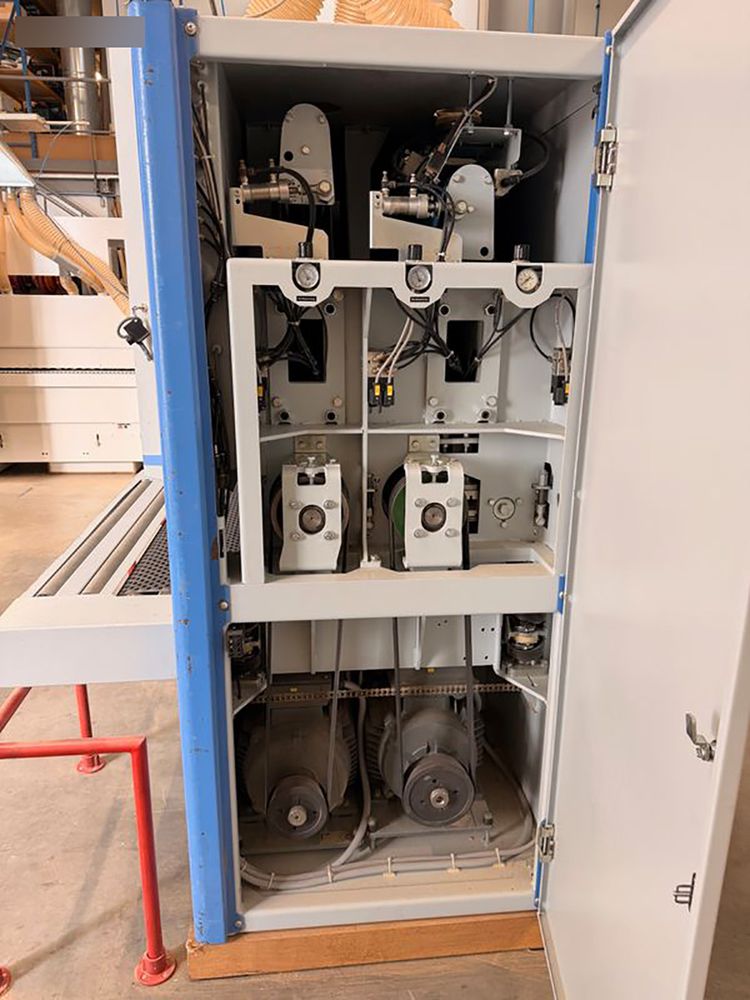

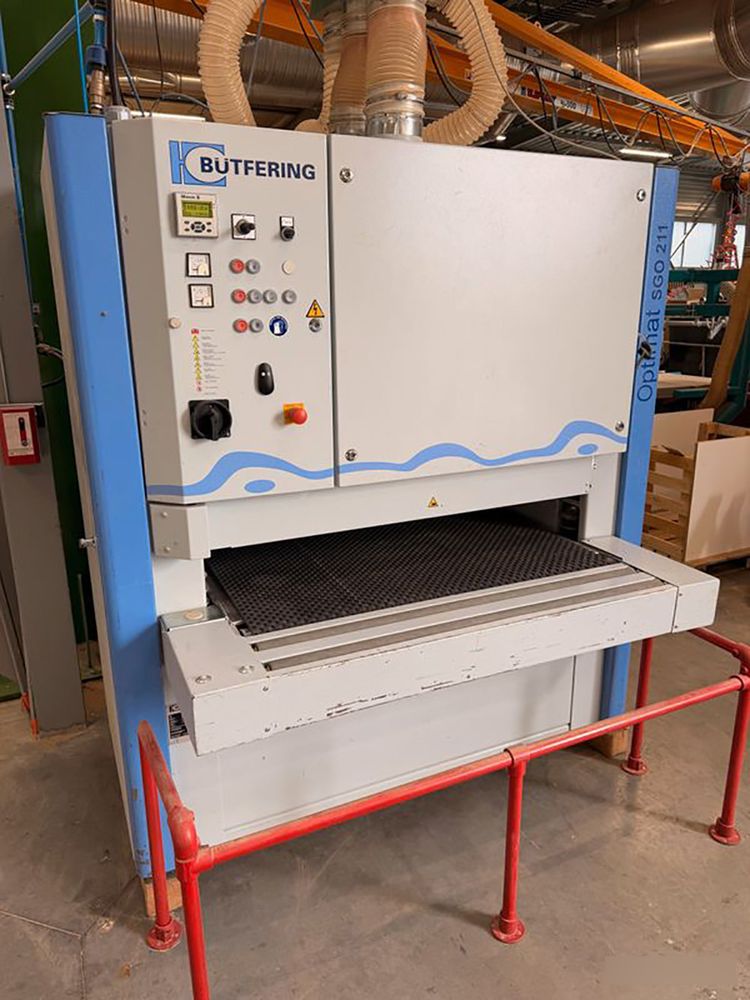

Butfering Optimat SGO 211
EUROPE (Western and Northern)
Calibrating and Grinding Machine, 630 sanding hours
Working width: 1100 mm
Workpiece thickness: 3–160 mm
Abrasive belt dimensions: 1120 x 1900 mm
Variable feed speed: 2.6–13 m/min
Feed motor power: 1.10 kW, 400 V, 50 Hz
Compressed air supply: 6 bar
Dimensions (L x W x H): 1705 x 1545 x 1905 mm
1st unit: Steel contact roller Ø 160 mm
Motor power: 15 kW, 400 V, 50 Hz
2nd unit Unit: Combined unit, Shore 65 rubber contact roller, rigid sanding shoe
Motor power: 11 kW, 400 V, 50 Hz
Abrasive belt cleaning by compressed air
3rd unit: Cleaning brush
Multifunction display
Multifunction lever (conveyor belt, workpiece thickness adjustment)
Electronic oscillation of the abrasive belt
Pneumatic oscillation of the conveyor belt
Motorized workpiece thickness adjustment with LED display in 0.1 mm increments
Units with emergency braking device
Emergency stop button at the infeed and outfeed
Motor circuit breaker
Automatic star/delta start
