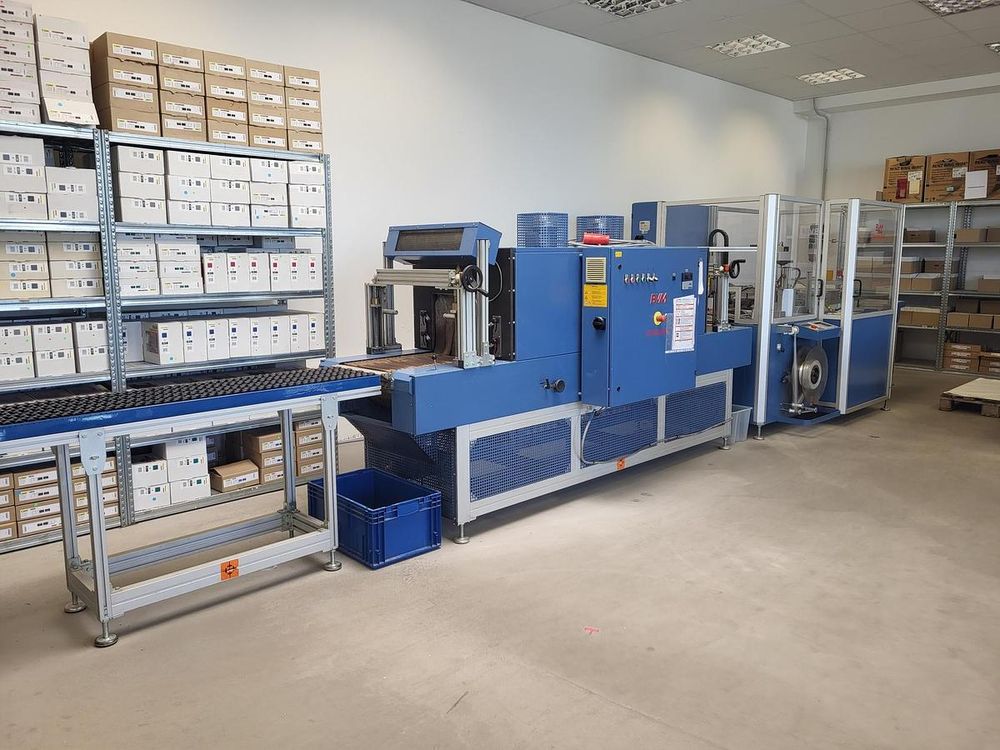

BVM Compacta 5022 650 mm Film packaging line

Ref : 2752898-5-MT
Condition : Used
Manufacturer : BVM
Model : Compacta 5022
Product Size : 650 mm
Short Description : Film packaging line
Year(s) : 2008
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Consisting of:
BVM Compacta 5022 – film packaging machine
SC 4530 SD – BVM high-performance shrink tunnel
TB400 x 1500 – Bernardo swivel bending machine
Dimensions of complete line: 9.00 x 2.00 m

Technical data:
BVM Compacta 5022
Side sealing machine for shrink film packaging
Packaging type: Three-sided sealed packaging with half-tube film
Output: Up to 120 cycles/min (depending on product and equipment)
Format range: Product width + product height max. 450 mm
Sealing width: 500 mm
Clearance height: 220 mm
Film types: Polyethylene, polyolefin, PVC
Film width: max. 650 mm

Special features:
Servo-controlled sealing platen drive
continuously heated sealing systems
Quick changeover without hand wheels
Touchscreen operation with job memory

Shrink tunnel SC 4530 SD – BVM
Type: High-performance shrink tunnel
Passage width: 450 mm
Passage height: 300 - 400 mm
Shrink zone: from 800 - 2800 mm
Tunnel length: 2385 mm
Heating power: from 8.4 - 25.2 kW
Connected load: approx. 19 kW
Power connection: 400 VDS, 50 Hz

Special features:
Digital temperature control
Adjustable air flow
Plastic link belt with water cooling

TB400 x 1500 – Bernardo swivel bending machine
Type: Manual bending machine with segmented upper beam
Working length: 1500 mm
Max. sheet thickness: 1.5 mm (at 400 N/mm²)
Max. opening width: 48 mm
Bending angle: 0–135°
Dimensions (W × D × H): 1820 × 1115 × 1150 mm
Weight: approx. 385 kg

Special features:
Segmented upper beam for flexible bending options
Foot pedal for hands-free operation when working on the workpiece
