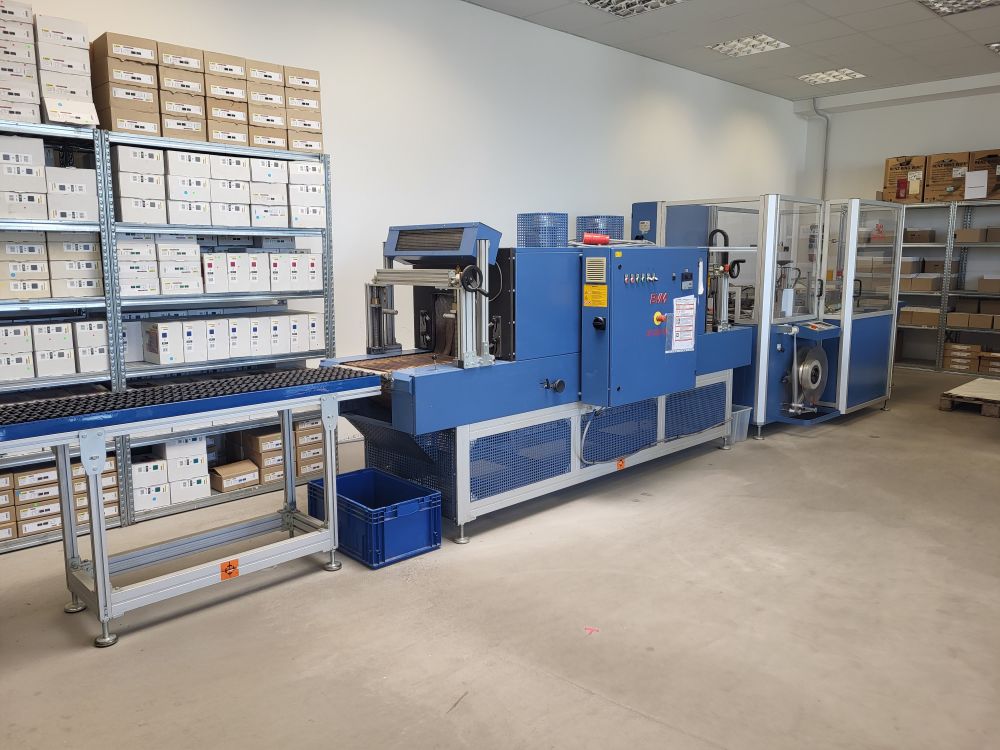

BVM Compacta 5022 with Shrink Tunnel SC 4530 SD

Sealing Frame Size: TB 400 x 1500 mm
Included Unit: Shrink Tunnel SC 4530 SD
Line Dimensions: approx. 9 × 2 m
Control: Siemens S7 PLC, Touch Panel with format memory
Output capacity: up to 120 cycles/min (depending on product & film)
Film types: PE / PO / PP / PVC shrink films
Film thickness: 8 – 100 µm
Product passage height: up to 220 mm (optionally up to 360 mm)
Folio width: max. 650 mm
Shrink Tunnel SC 4530 SD
Passage width: 450 mm
Passage height: 300–400 mm
Shrink zone length: 800 – 2800 mm
Heating capacity: 8.4 – 25.2 kW
Temperature control: digital, adjustable up to 250 °C
Transport system: heat-resistant silicone-coated transport rods, adjustable speed
Double air-flow system: for optimal shrink results
