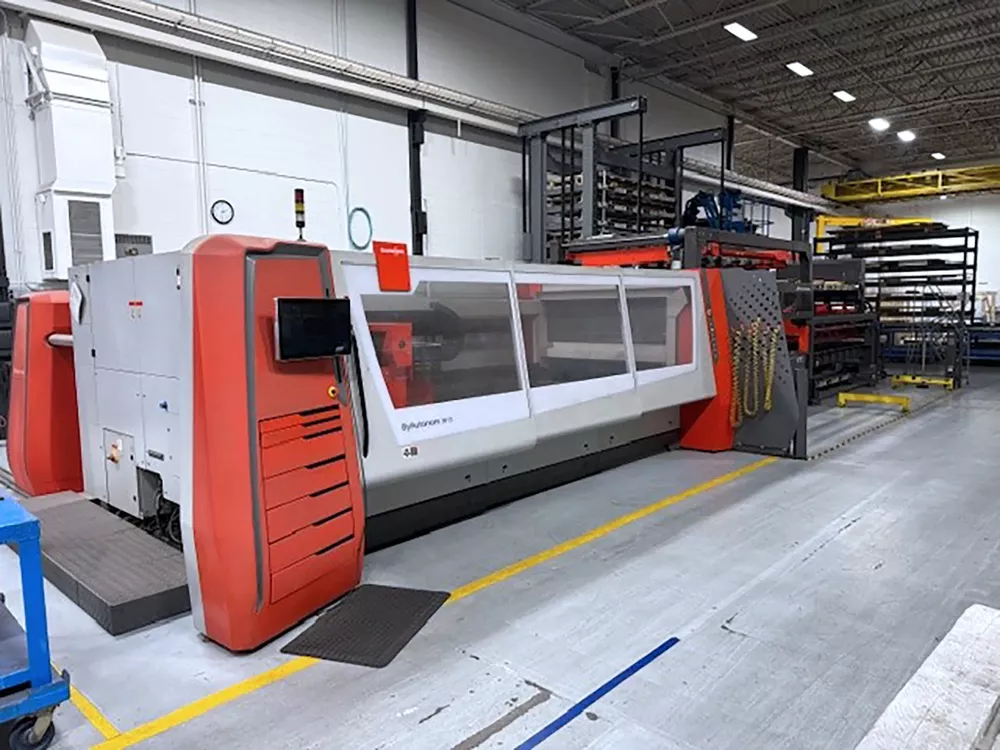

Bystronic ByAutonom 3015 Control Bystronics Windows-Based CNC Control

Z-Axis Travel 6.7"
Control Bystronics Windows-Based CNC Control
Laser Output 4,400 watts
Wavelength 10.6 microns (CO₂ laser)
Pulse Frequency 1–2,500 Hz
Polarization Circular
Max Cutting Area 60" × 120"
Max Positioning Speed (Single Axis) 3,150 in/min
Max Positioning Speed (Simultaneous) 4,450 in/min
Max Acceleration 177 in/s²
Positioning Accuracy ±0.004"
Repeatability ±0.002"
Edge Detection Accuracy ±0.02"
Max Mild Steel Thickness Up to 1"
Stainless Steel Capacity Up to 0.75"
Aluminum Capacity Up to 0.5"
Cutting Heads 5" and 7.5" focal lengths
Footprint Approx. 42.3 ft (L) × 20 ft (W) × 6.8 ft (H)
Approximate Machine Weight 29,800 lbs
Max Sheet Weight 4,300–4,400 lbs
ByTrans 3015 Extended Automation
ByTower 3015
Donaldson TG4 Dust Collector
Chiller
Dual Pallet Shuttle Table
ByLaser 4400W CO2 Resonator
