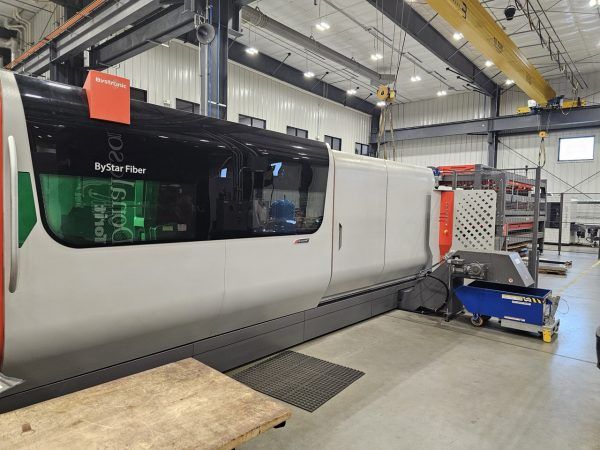

Bystronic Bystar 4020 CNC CONTROL

Laser power: 15,000 W
X-axis nominal sheet size: 160 in
Y-axis nominal sheet size: 80 in
Cutting area X: 162 in
Cutting area Y: 83 in
Cutting area Z: 4 in
Max positioning speed parallel axis X/Y: 4724 in/min
Max positioning speed simultaneous: 6681 in/min
Bilateral repeatability of one axis R: 0.001 in
Average bilateral position deviation of one axis M: 0.002 in
Edge detection accuracy: ±0.02 in
Max workpiece weight: 4190 lbs
Max allowed workpiece weight on both shuttle tables: 7080 lbs
Machine weight (excl. exhaust and conveyor): 32,000 lbs
Table change time: 28 s
Laser source: Fiber
Power range: 400–15,000 W
Wavelength: Fiber
Steel max cuttable thickness: 1/1.96 in
Steel with BeamShaper option: 1.18 in
Stainless steel max cuttable thickness: 1.57/1.96 in
Aluminum max cuttable thickness: 1.57/1.96 in
Brass max cuttable thickness: 0.75 in
Copper max cuttable thickness: 0.75 in
Total electric consumption: 27 kW
Length approx.: 559 in
Width approx.: 248 in
Height approx.: 126 in
Equipped with ByTrans extended automation
Very clean, low hours
