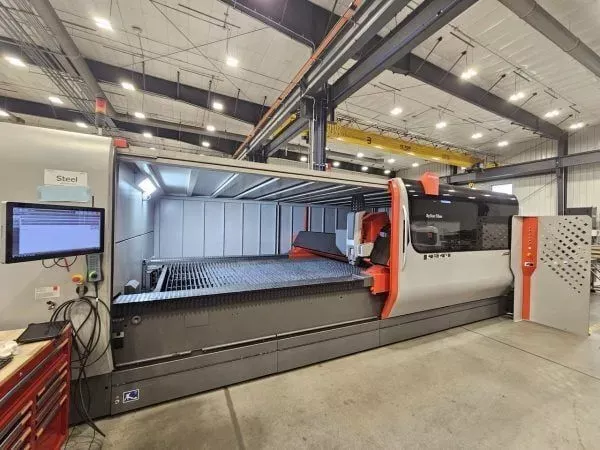

Bystronic BYSTAR 4020 Bystronic CNC Controls

X-Axis Travel: 160"
Y-Axis Travel: 80"
Z-Axis Travel: 6.7"

Maximum Positioning Speed X/Y: 4,724 in/min
Maximum Simultaneous Positioning Speed: 6,681 in/min
Bilateral Repeatability of One Axis: ±0.001 in
Bilateral Position Deviation of One Axis: ±0.002 in
Edge Detection Accuracy: ±0.02 in
Maximum Workpiece Weight: 4,190 lbs
Maximum Workpiece Weight on Both Shuttle Tables: 7,080 lbs
Control: Bystronic CNC Controls
Laser Source: Fiber 6,000 W
Sheet Capacity Width: 79"
Sheet Capacity Length: 157"
Cutting Area Width: 162"
Cutting Area Length: 83"
Maximum Steel Cutting Thickness (with BeamShaper): 1/1.18 in
Maximum Stainless Steel Cutting Thickness: 1.18 in
Maximum Aluminum Cutting Thickness: 1.18 in
Maximum Brass Cutting Thickness: 0.59 in
Maximum Copper Cutting Thickness: 0.47 in
Total Electric Consumption: 34.3 kW
Construction Length: 559 in
Construction Width: 248 in
Construction Height: 126 in
Table Changeover Time: 28 s
Machine Weight (without exhaust and conveyor): 32,000 lbs

Features / Equipment
Bystronic CNC Controls
Fiber Laser 6,000 W
